QDM150 Multi-Functional Quick Detach Mount 1.5″ Height Compatible with ThermNight, Hydra and ZULUS HD V1 & V2

$110.99
$110.99
$135.99
1-2 Weeks Lead Time
1-2 Weeks Lead Time
Incompatible with some early versions of TNC225R. Learn More
Subtotal: $110.99
QDM150 Multi-Functional Quick Detach Mount 1.5″ Height Compatible with ThermNight, Hydra and ZULUS HD V1 & V2

QDM150 Multi-Functional Quick Detach Mount 1.5″ Height Compatible with ThermNight, Hydra and ZULUS HD V1 & V2

$135.99 $110.99

QDM150 Multi-Functional Quick Detach Mount 1.5″ Height Compatible with ThermNight, Hydra and ZULUS HD V1 & V2

$135.99 $110.99

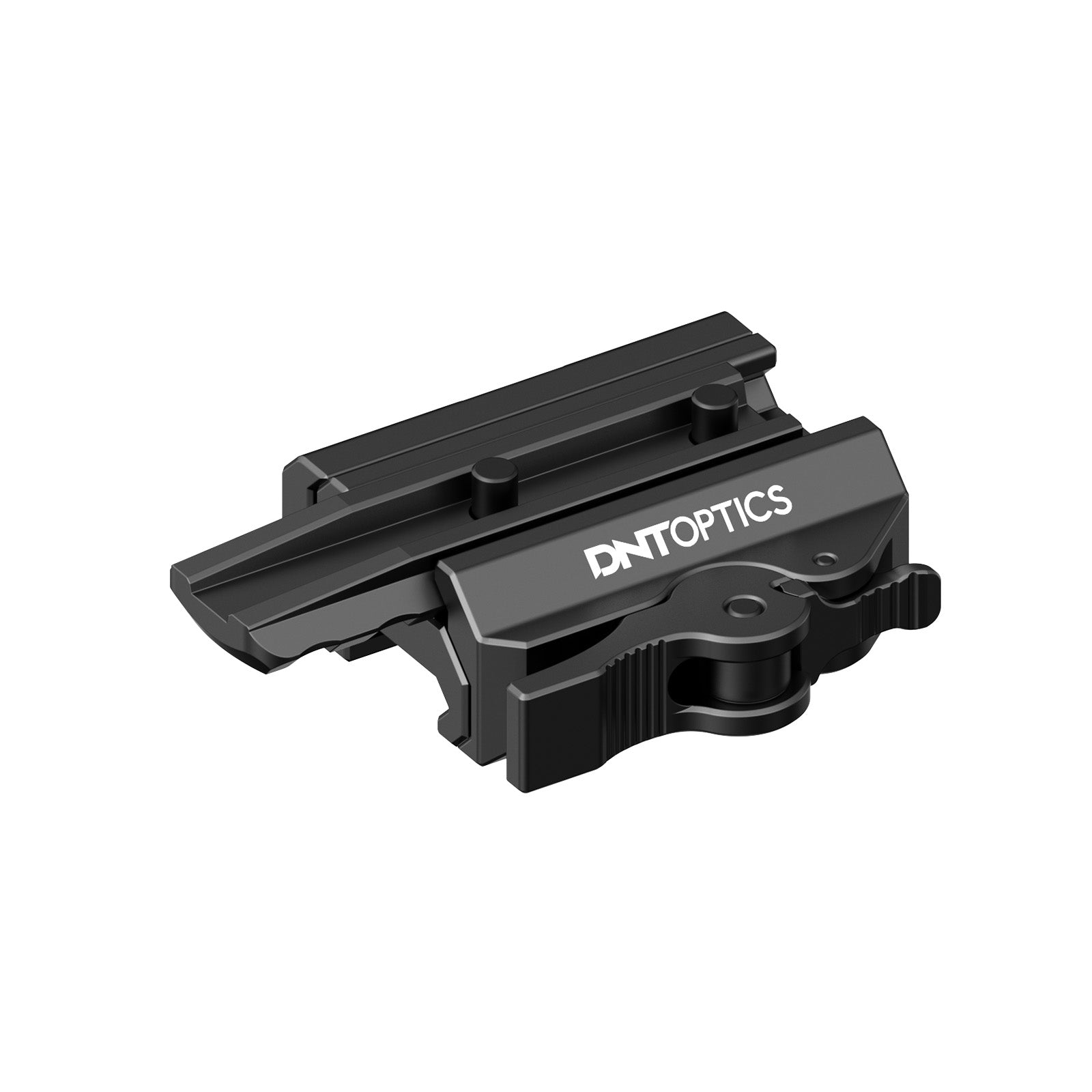

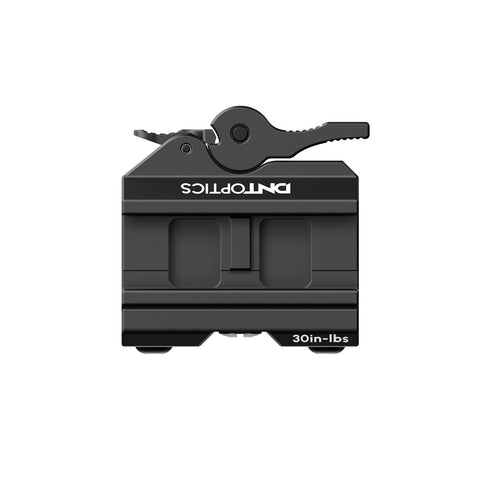

    Multi-Function Quick Detach Mount

    Built for shooters who demand speed, accuracy, and adaptability, the QDM150 features a 1.5″ height from rail to optic centerline (measured with compatible DNT scopes). This quick release mount lets you detach and secure optic in seconds while maintaining perfect zero, keeping your setup mission-ready in any scenario.


    Two-Way Quick Detach, Rock-Solid Performance

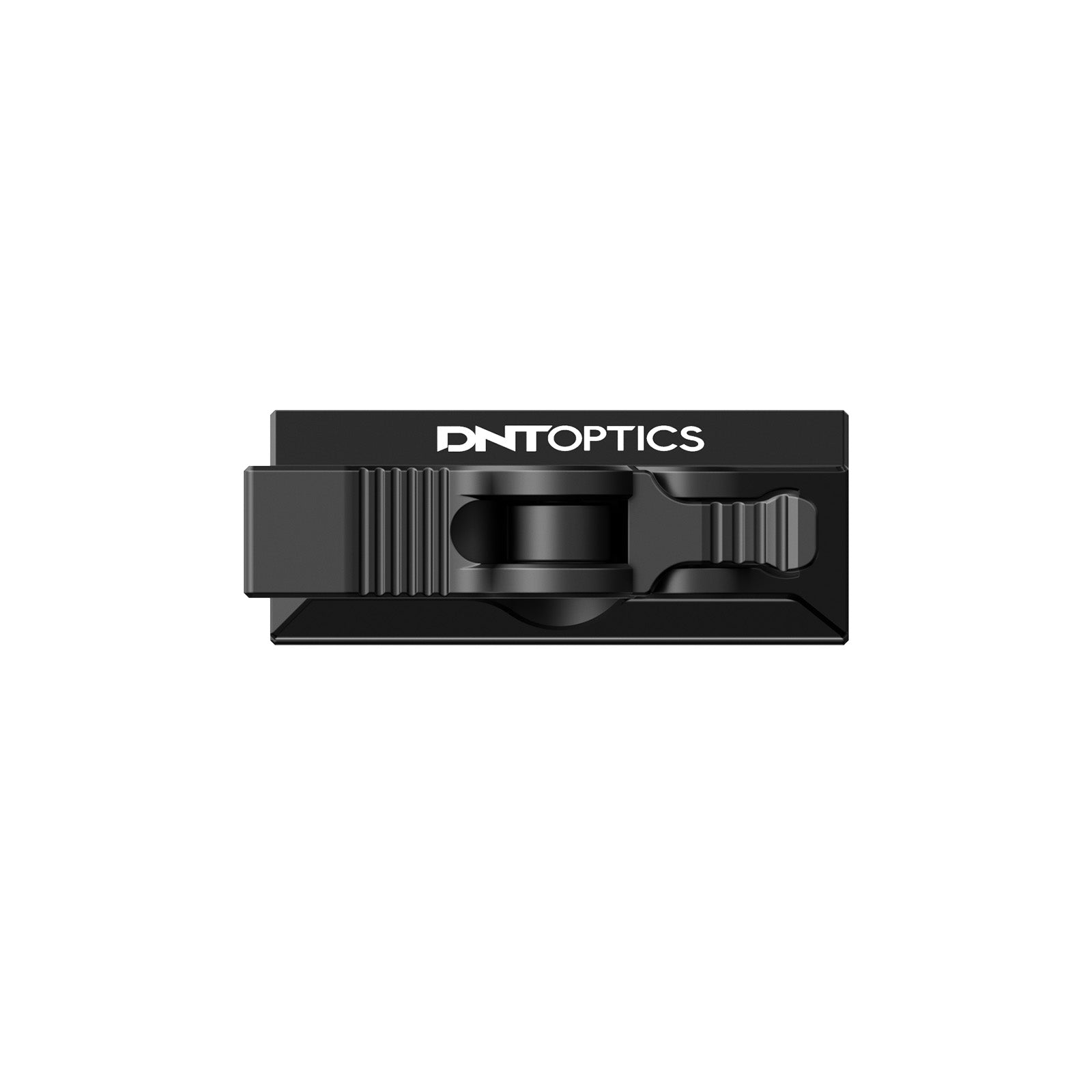

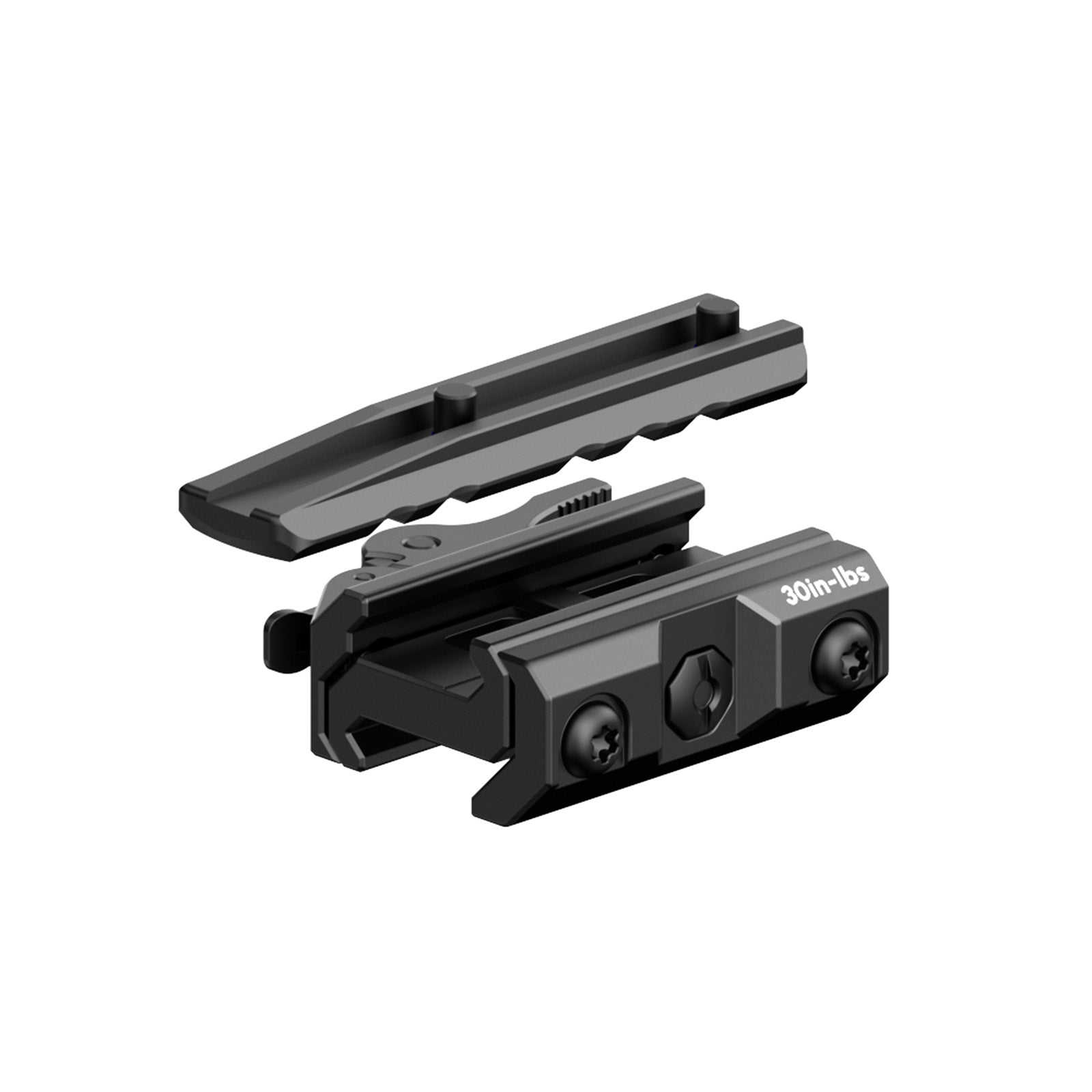

    With dual-sided Picatinny slots, this adaptive mount system allows for fast switching between rifle-mounted and handheld use. Engineered with a locking latch, it instantly secures your optic or rifle with a confident click. To detach, simply press the latch and flip the lever. This tool-free detach system ensures uncompromising stability and full control with every transition.


    Rugged Durability Meets Elegant Design

    Machined from a single block of 6063 aircraft-grade aluminum, the QDM150 delivers exceptional strength and stability. Its hard-anodized matte black finish resists scratches and corrosion, offering a sleek, professional look built to last. Tough and stylish, this quick attach/detach system performs flawlessly in any environment.


    Seamless HYDRA Integration, Compatible with More

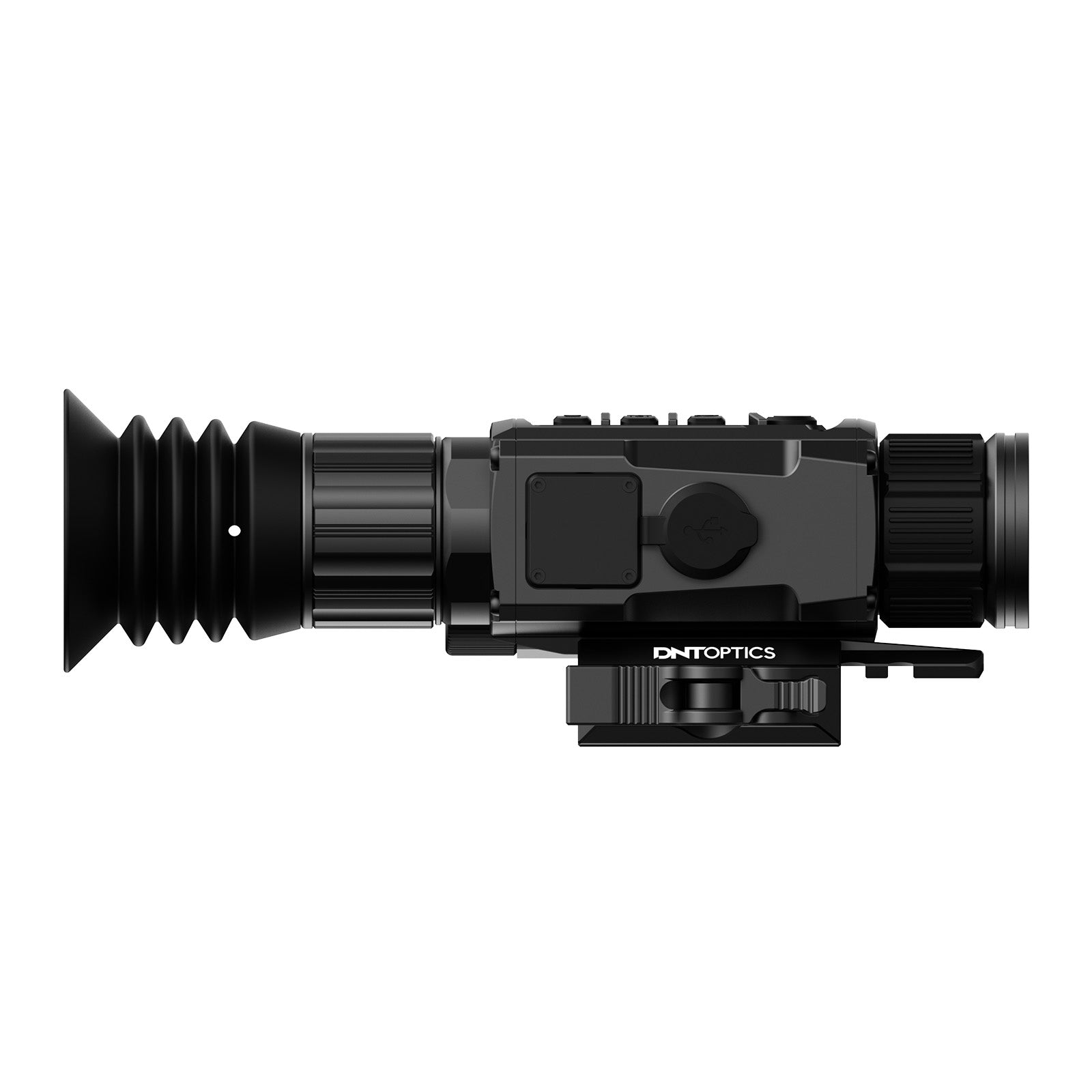

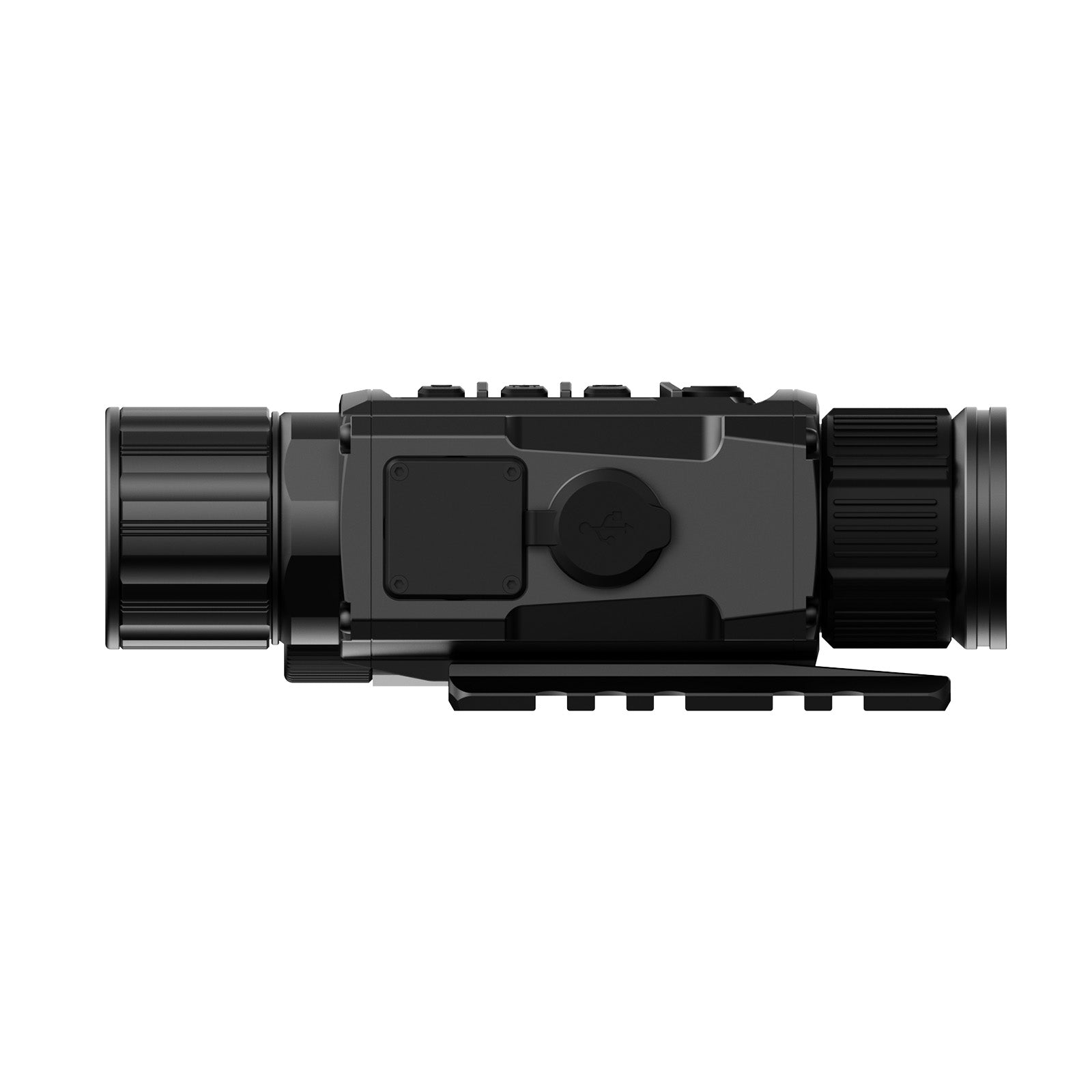

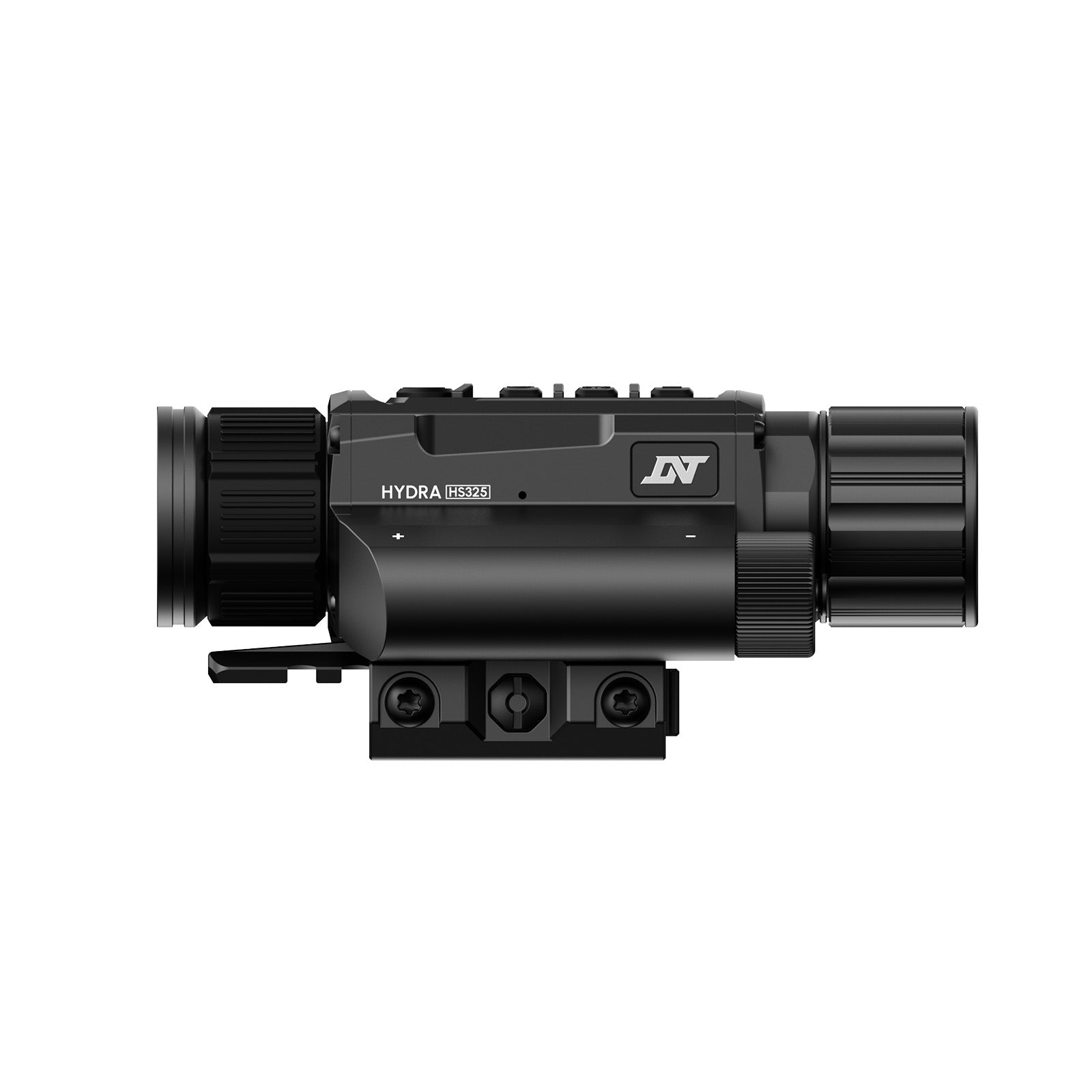

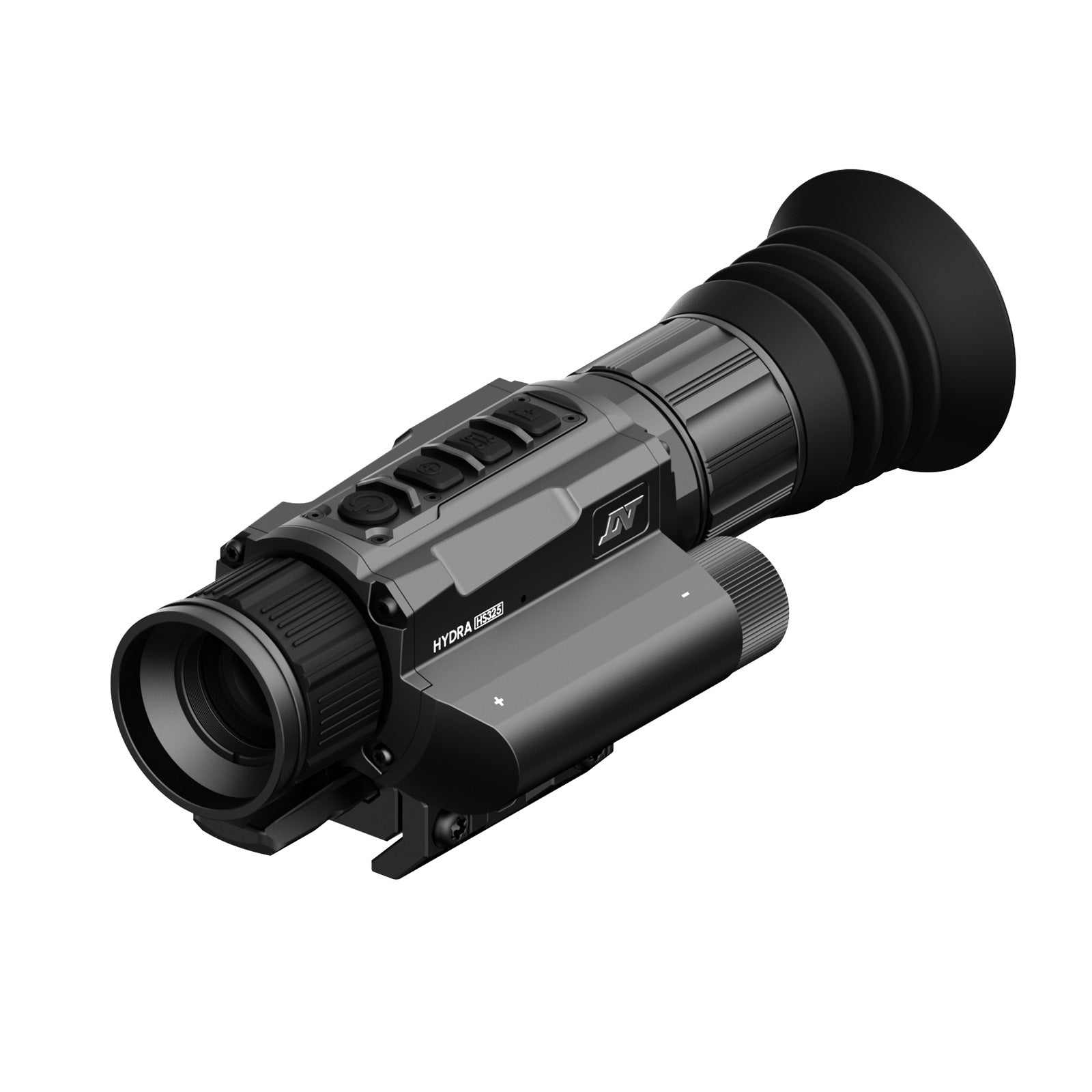

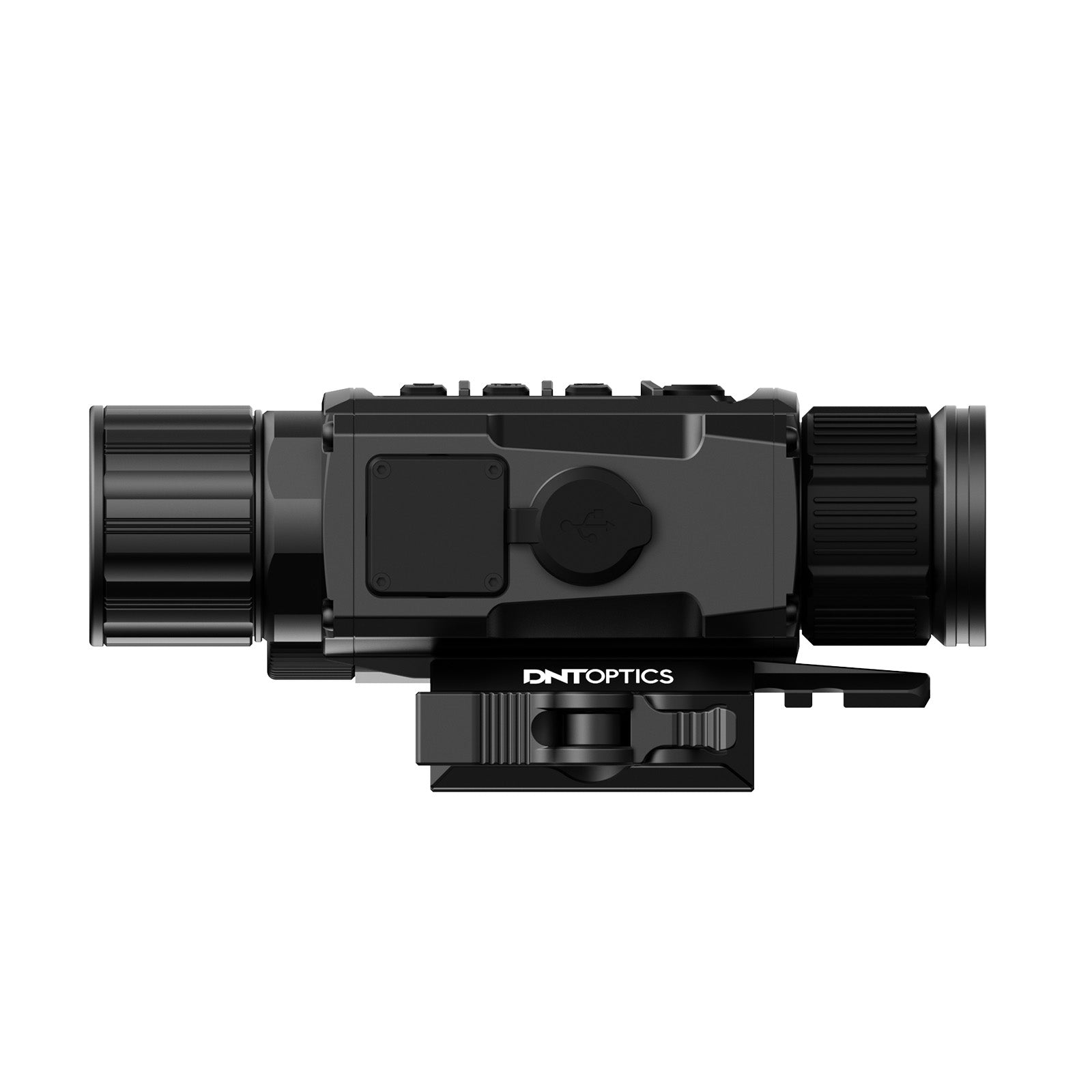

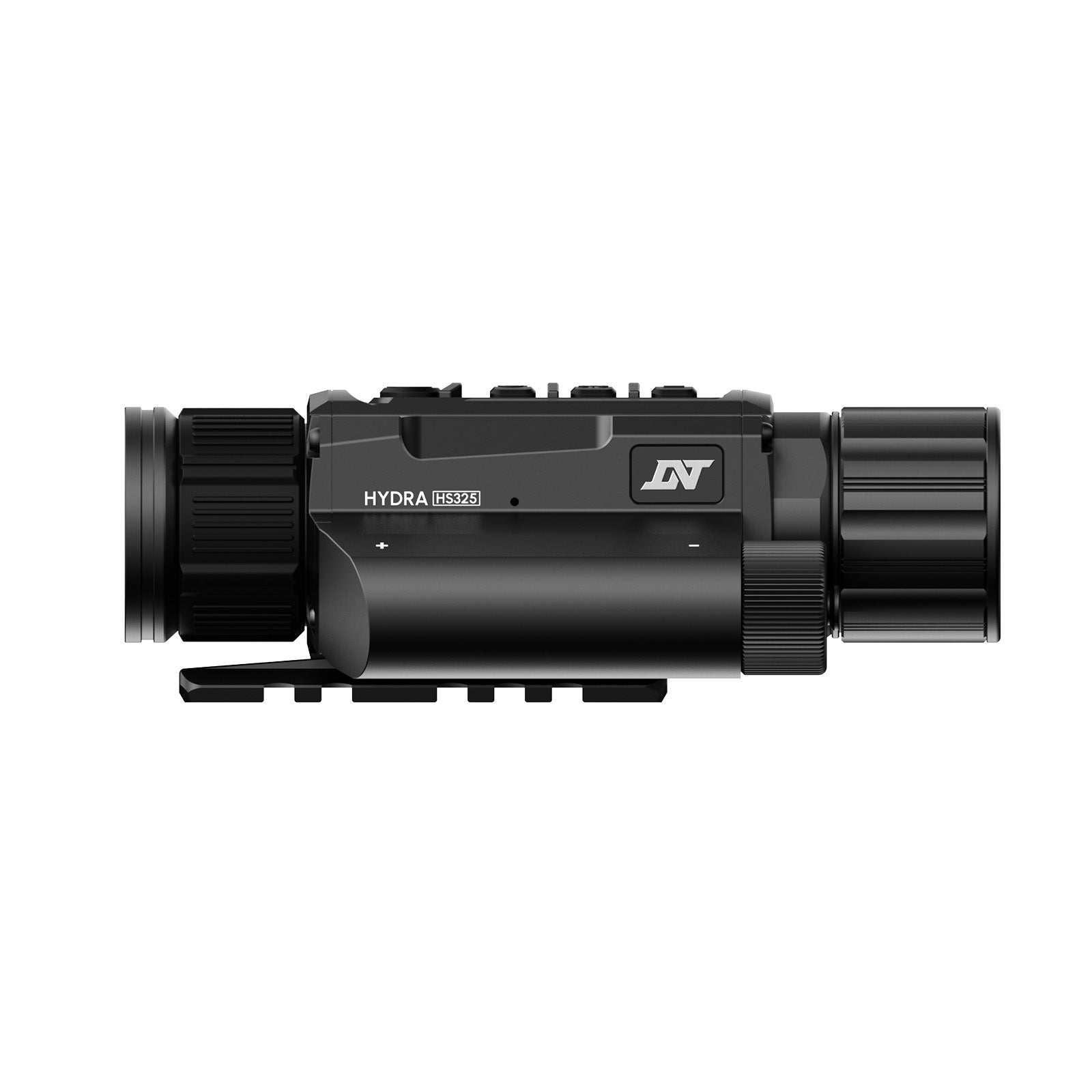

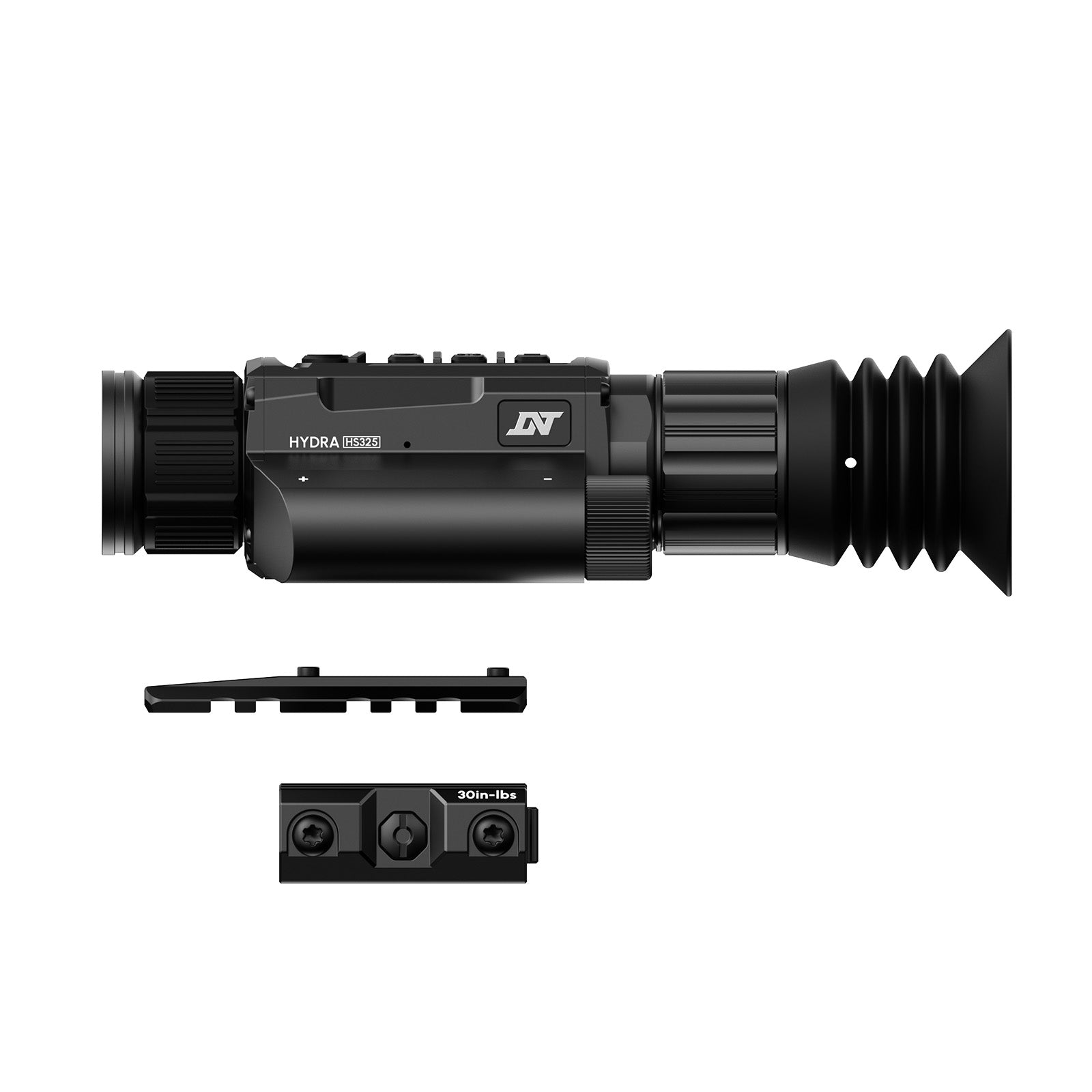

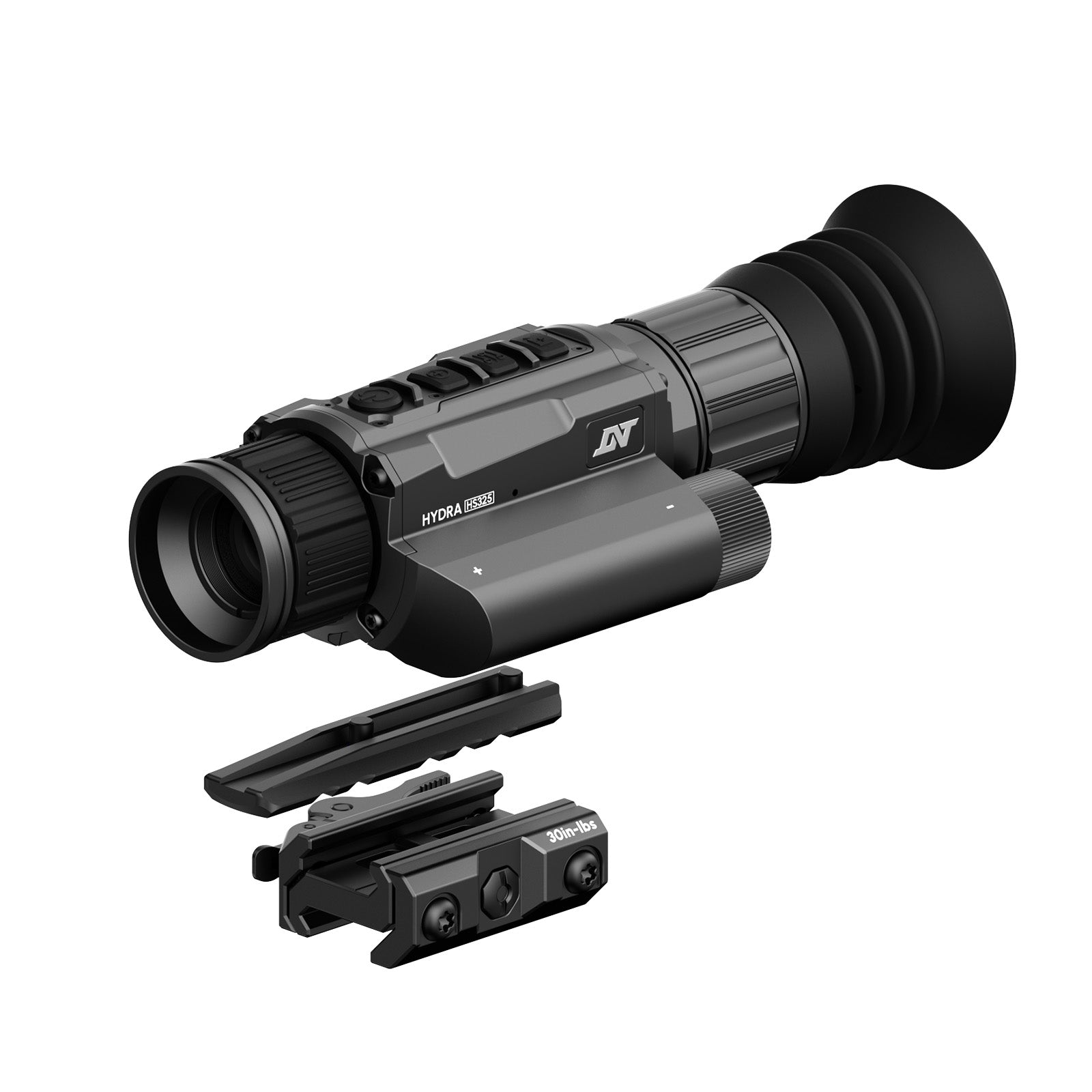

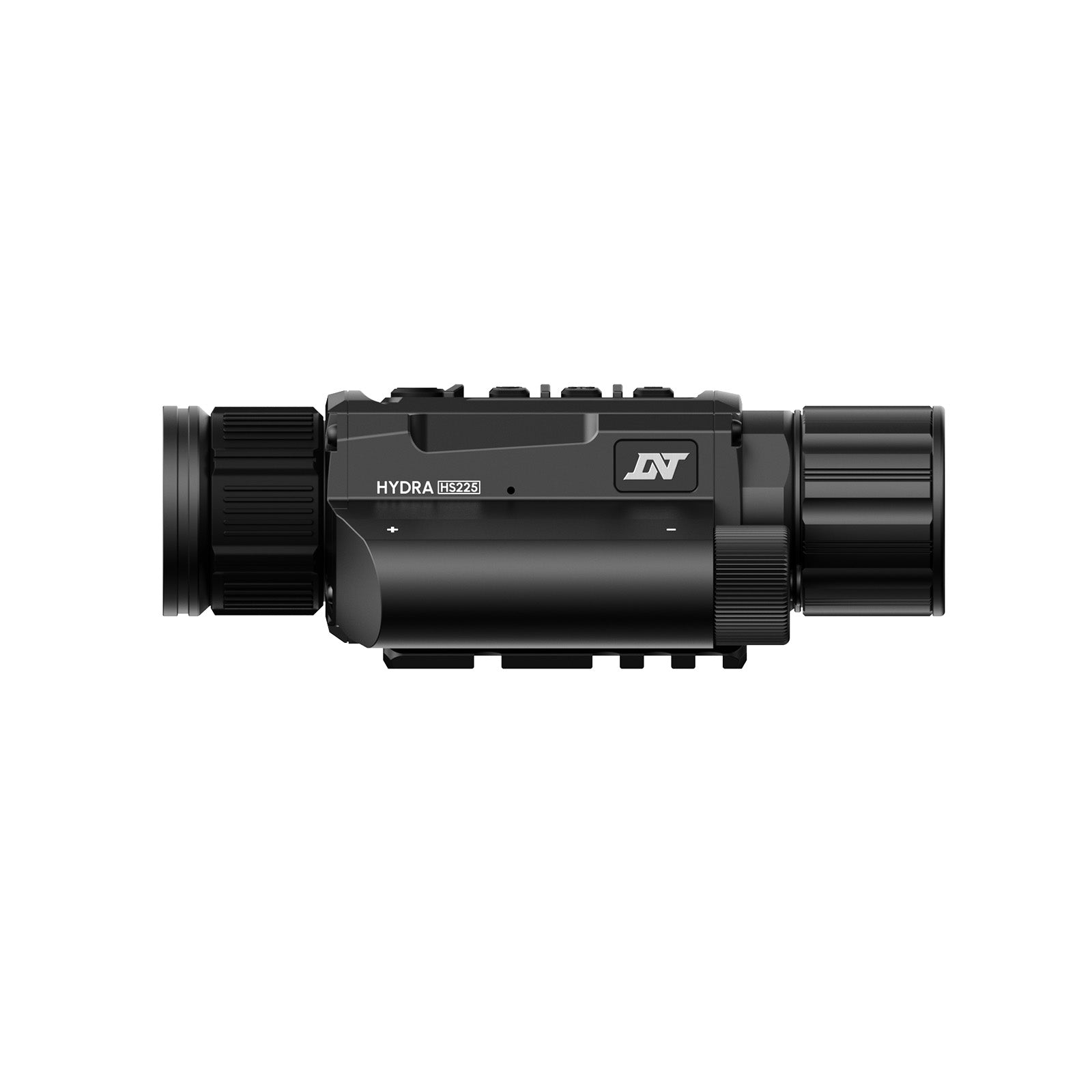

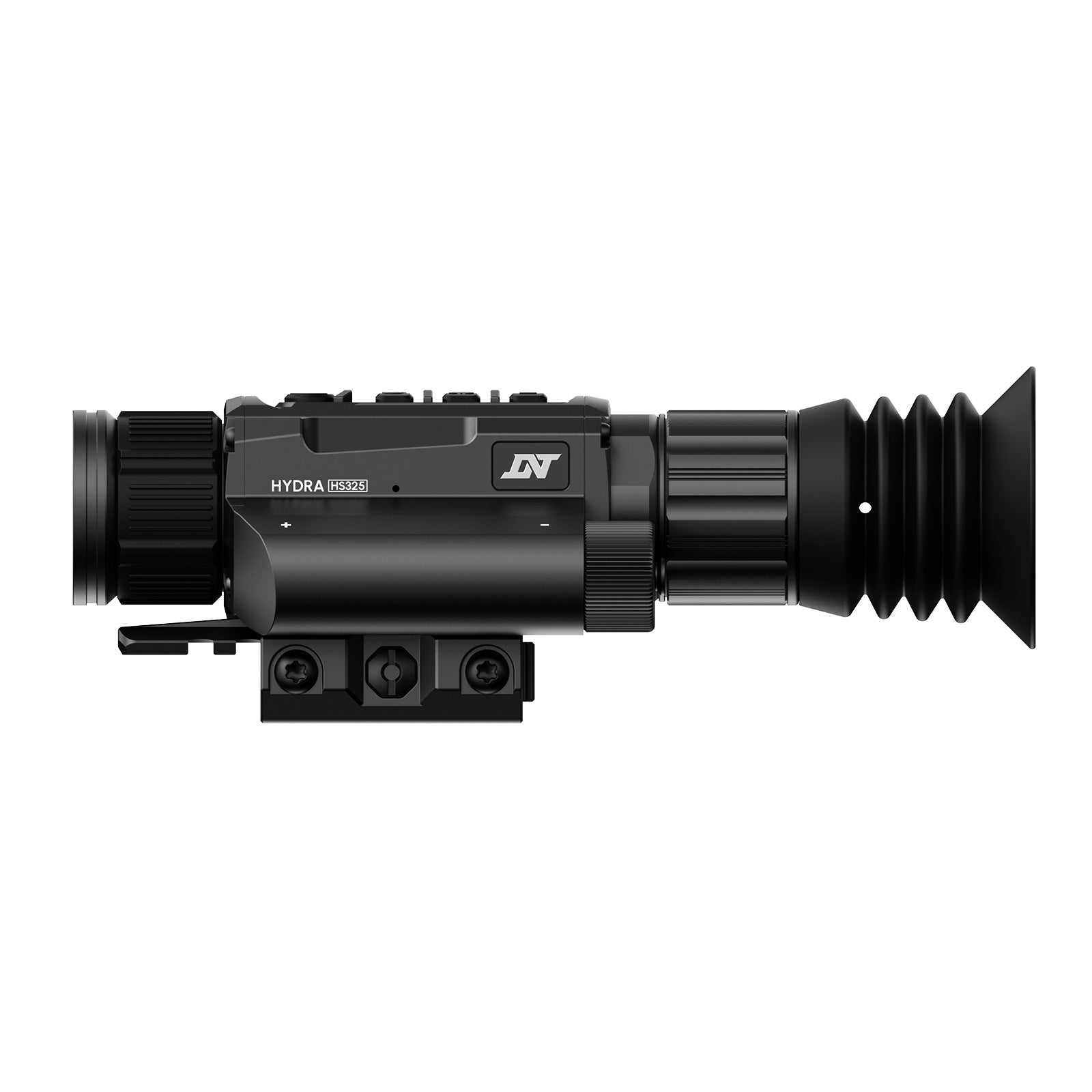

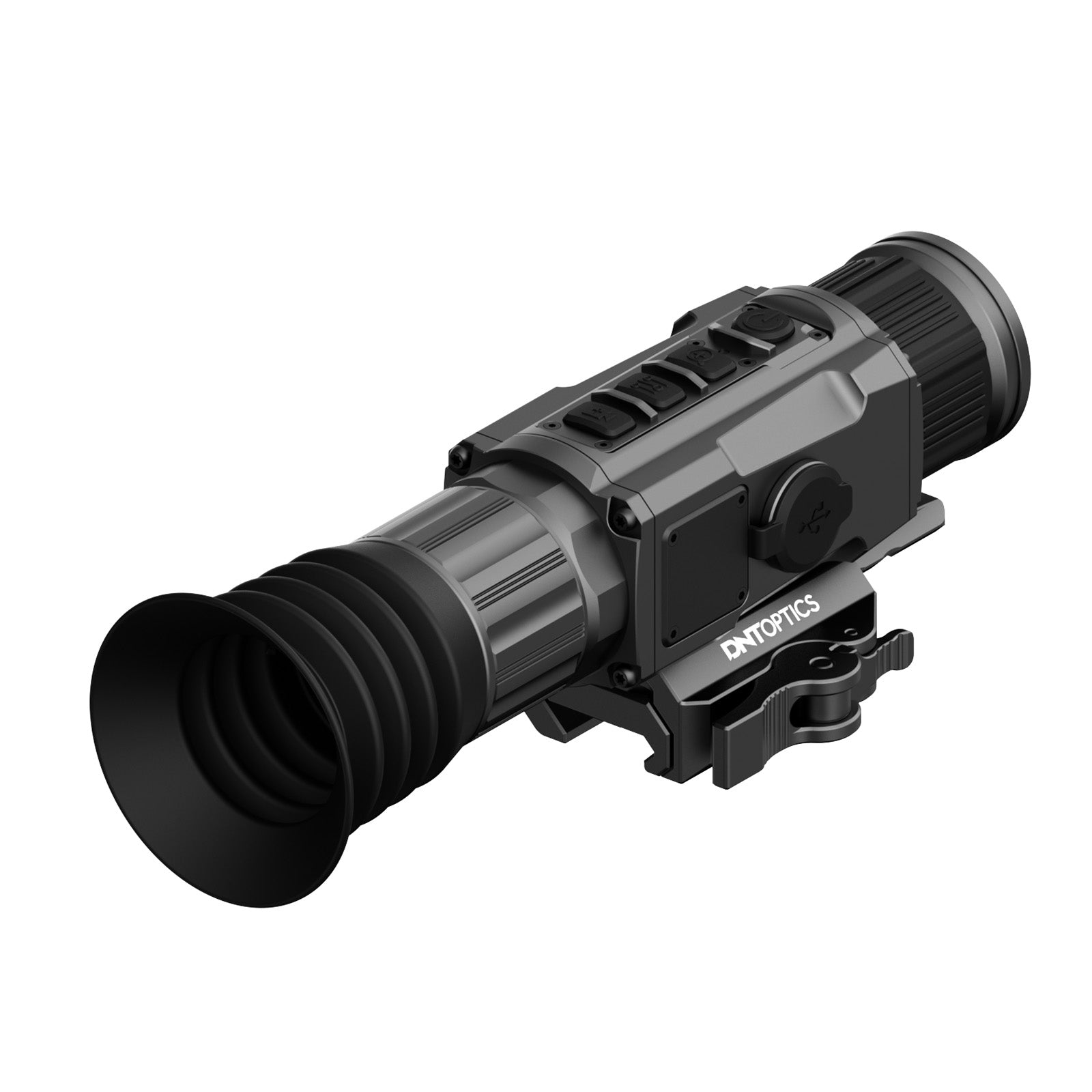

    Specifically designed for the HYDRA series, the QDM150 enables effortless switching between thermal clip-on, handheld monocular, and standalone scope operations. This versatile detach mount also works seamlessly with the ThermNight, ZULUS HD series, providing maximum versatility across your gear.

    The QDM150 is also compatible with optics from other brands that share matching mounting specifications. Please refer to the specification table for details.



    Note: Earlier versions of the TNC225R feature a square mounting base (see image below). These models are not compatible with the QDS150 and QDM150 Quick Detach Mounts.

    -QDM150 SPECIFICATIONS-

    Typical Use Case
    Designed For
    Compatible Series
    Quick switching mount between Clip-On / Standalone scope / Handheld
    HYDRA
    ZULUS / HYDRA / ThermNight
    Interface (Scope Side)
    Interface (Rail Side)
    Material
    Picatinny Rail
    Picatinny Rail
    6063 Aircraft-grade Aluminum Alloy
    Color / Surface Treatment
    Dimensions (L × W × H)
    Weight
    Matte Black / Hard-Anodization
    55.0 mm × 57.5 mm × 22.5 mm / 2.17 in × 2.26 in × 0.89 in
    119 g / 4.20 oz (with Picatinny Adapter)
    Quick Detach Mechanism
    Zero Maintenance Ability
    Return-to-Zero Accuracy
    Auto-Locking Latch
    ≤0.1 mil
    ≤0.3 mil
    Recoil Rating
    Operating Temperature
    Screw Hole Count
    800 Gs / .50 BMG
    −20 to 50°C / −4 to 122°F
    2
    Screw Hole Spacing
    Screw Specifications
    Head Shape [Socket] Diameter × Length × Head Diameter (mm)
    Torque
    42 mm / 1.65 in
    Picatinny Adapter Screw
    Flat-Head [T25 Torxplus] M5×10×9.8
    Side Plate Screw
    Pan-Head [T25 Torxplus] M5×20×9.25
    Picatinny Adapter Screw
    35 in-lbs

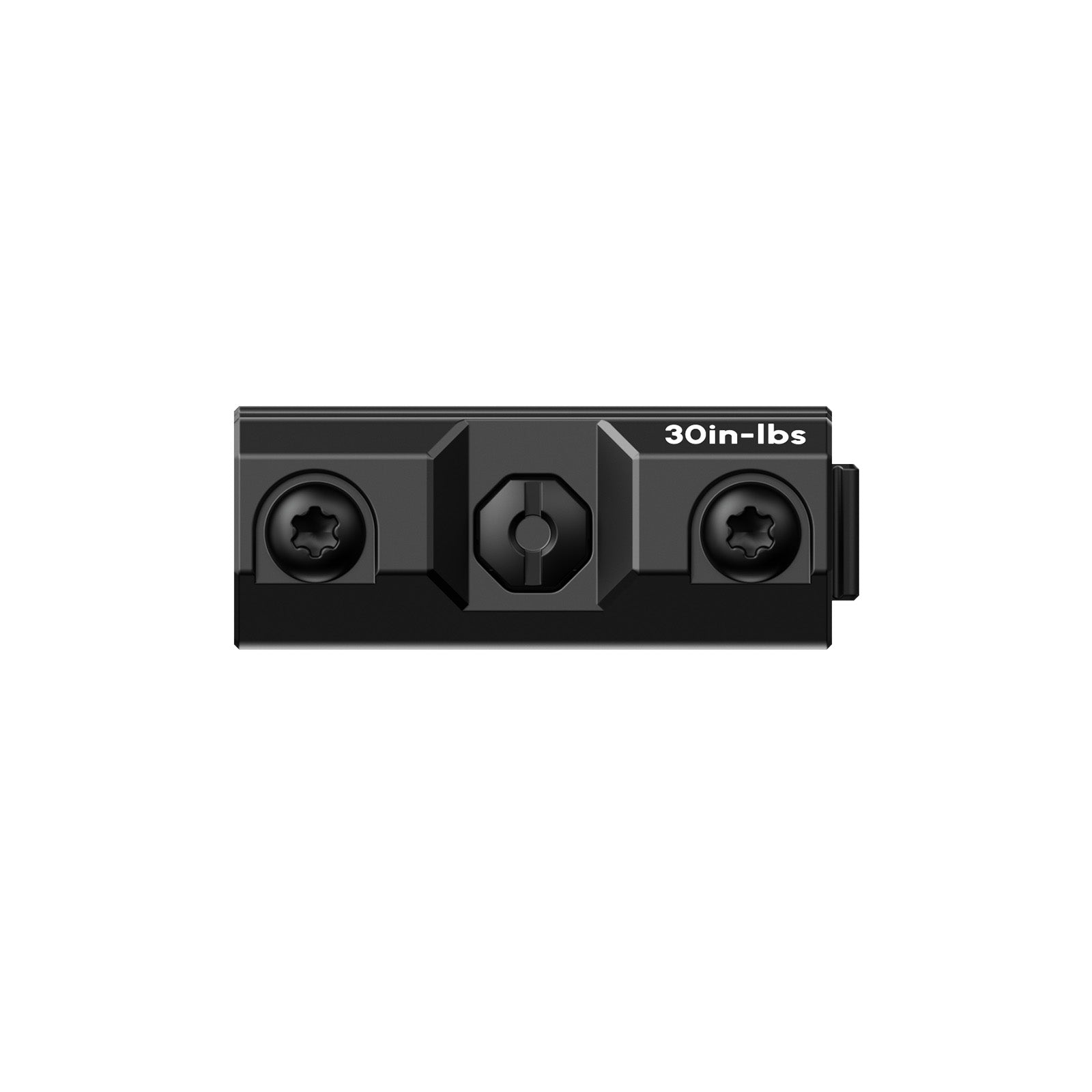

    Side Plate Screw
    30 in-lbs

    Typical Use Case
    Quick switching mount between Clip-On / Standalone scope / Handheld
    Designed For
    HYDRA
    Compatible Series
    ZULUS / HYDRA / ThermNight
    Interface (Scope Side)
    Picatinny Rail
    Interface (Rail Side)
    Picatinny Rail
    Material
    6063 Aircraft-grade Aluminum Alloy
    Color / Surface Treatment
    Matte Black / Hard-Anodization
    Dimensions (L × W × H)
    55.0 mm × 57.5 mm × 22.5 mm / 2.17 in × 2.26 in × 0.89 in
    Weight
    119 g / 4.20 oz (with Picatinny Adapter)
    Quick Detach Mechanism
    Auto-Locking Latch
    Zero Maintenance Ability
    ≤0.1 mil
    Return-to-Zero Accuracy
    ≤0.3 mil
    Recoil Rating
    800 Gs / .50 BMG
    Operating Temperature
    −20 to 50°C / −4 to 122°F
    Screw Hole Count
    2
    Screw Hole Spacing
    42 mm / 1.65 in
    Screw Specifications
    Head Shape [Socket] Diameter × Length × Head Diameter (mm)
    Picatinny Adapter Screw
    Flat-Head [T25 Torxplus] M5×10×9.8
    Side Plate Screw
    Pan-Head [T25 Torxplus] M5×20×9.25
    Torque
    Picatinny Adapter Screw
    35 in-lbs
    Side Plate Screw
    30 in-lbs
    Note
    DNT digital scopes have similar height from base to optic centerline across models and series.

    Customer Reviews

    Based on 33 reviews
    94%
    (31)
    3%
    (1)
    0%
    (0)
    3%
    (1)
    0%
    (0)
    D
    D.B.

    QDM150 Multi-Functional Quick Detach Mount 1.5″ Height Compatible with ThermNight, Hydra and ZULUS HD V1 & V2

    B
    B.
    The QD 150 is Great

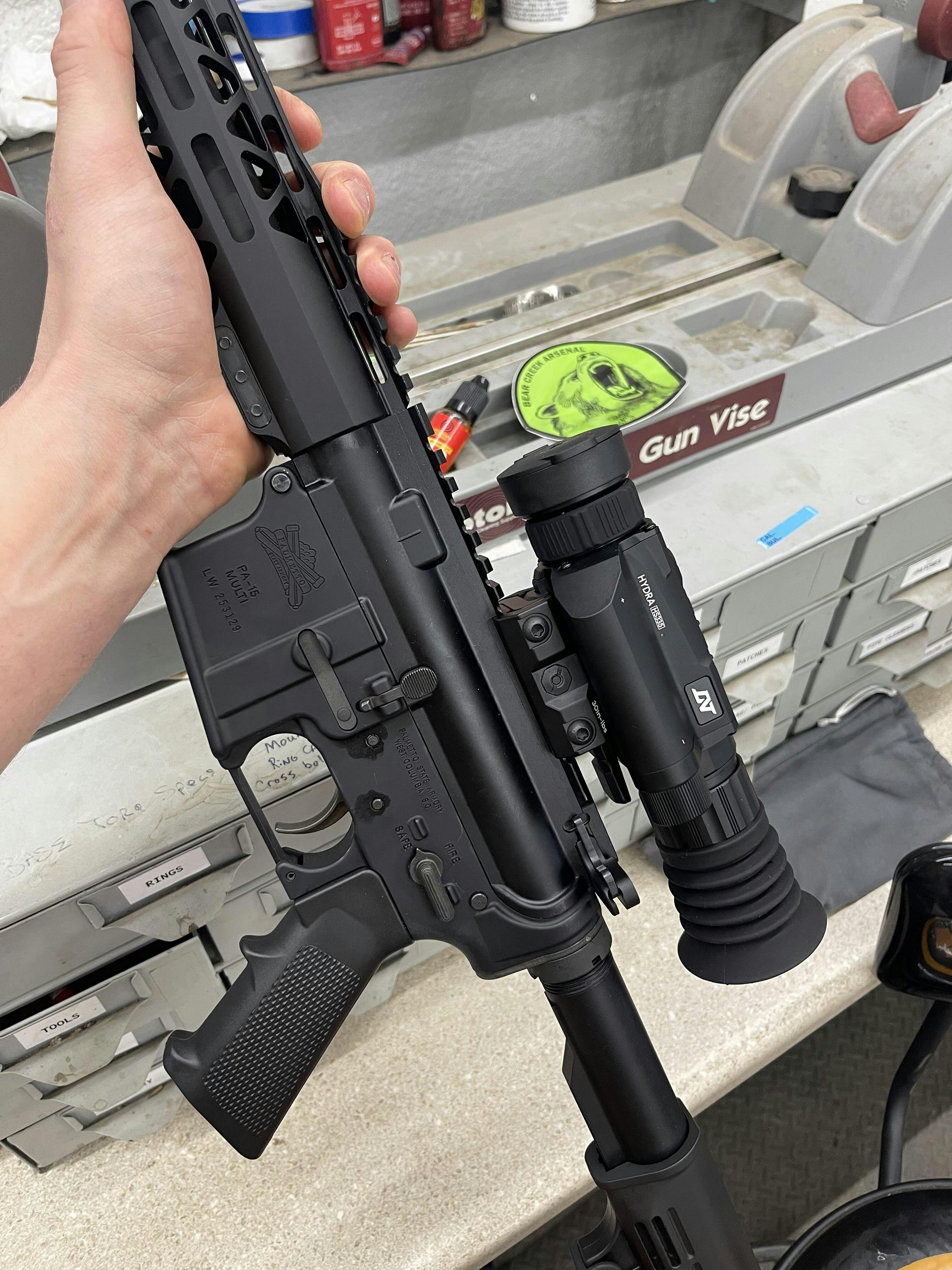

    The QD 150 seems really good so far. I sighted in the pulled the hydra off 3 times and maintained my zero everytime!!! Thats a win for me because this hydra will be multi purposed for me.

    M
    M.F.
    Quick detach mount is great.

    In haven’t used it in the field but switched the scope on 2 different guns and seems good.

    C
    C.S.B.

    Really good product

    M
    M.
    QDM150

    Only had the mount for a few weeks so I can't say how it will hold up over time. I have switched back and forth between two AR rifles (308 and 300BO sub and supers) with a Hydra. The mount holds zero as far as I can tell.

    C
    C.B.

    QDM150 Multi-Functional Quick Detach Mount 1.5″ Height Compatible with ThermNight, Hydra and ZULUS HD V1 & V2

    P
    P.g.
    Maximum use

    Hydra in my hand spotting from the deck. Quickly attached to my silent 22 Job done. Over to my 9mm carbine, ready to go. Makes my Hydra worth every penny.
    Quick Detach Mount… a must have!

    C
    C.N.
    Easy to use

    Easy to use.Works great

    Y
    Y.K.
    Worth the price

    Very well built

    T
    T.S.
    Great design

    Great design. Very versatile. Functions perfectly.
