TNC225R - ThermNight Thermal & Night Vision Multispectral Scope with Laser Rangefinder and Ballistic Calculator
Mount Type: PMS - Picatinny 0 MOA Short
- $1,099.99
$1,299.99- $1,099.99
- Unit price
- per
In Stock
Couldn't load pickup availability
Free Shipping
2-Year Warranty for TNC225R ( Extended Warranty )
30-Day Returns
Free Accessory Pack - 18650 Battery X2 and Battery Charger
TNC225R - ThermNight Thermal & Night Vision Multispectral Scope with Laser Rangefinder and Ballistic Calculator
TNC225R - ThermNight Thermal & Night Vision Multispectral Scope with Laser Rangefinder and Ballistic Calculator
Thermal/Night Vision
Combination
Day&Night
in All Conditions
LRF
Ballistic Calculator
Thermal: 3x-12x
Night Vision: 5x-20x
Thermal imaging offers superior nighttime detection ranges, enhanced by digital night vision to precisely identify targets with accuracy and reliability
ThermNight TNC225R comes with a highly sensitive 12um pixel detector and an advanced algorithm enhanced 256x192 resolution combined with NETD ≤ 25mK. This allows you to detect heat signatures at further distances and positive lD your target with digital NV before engaging.
Night Vision & ThermaI Design Ensures a Safe and Memorable Hunting Experience

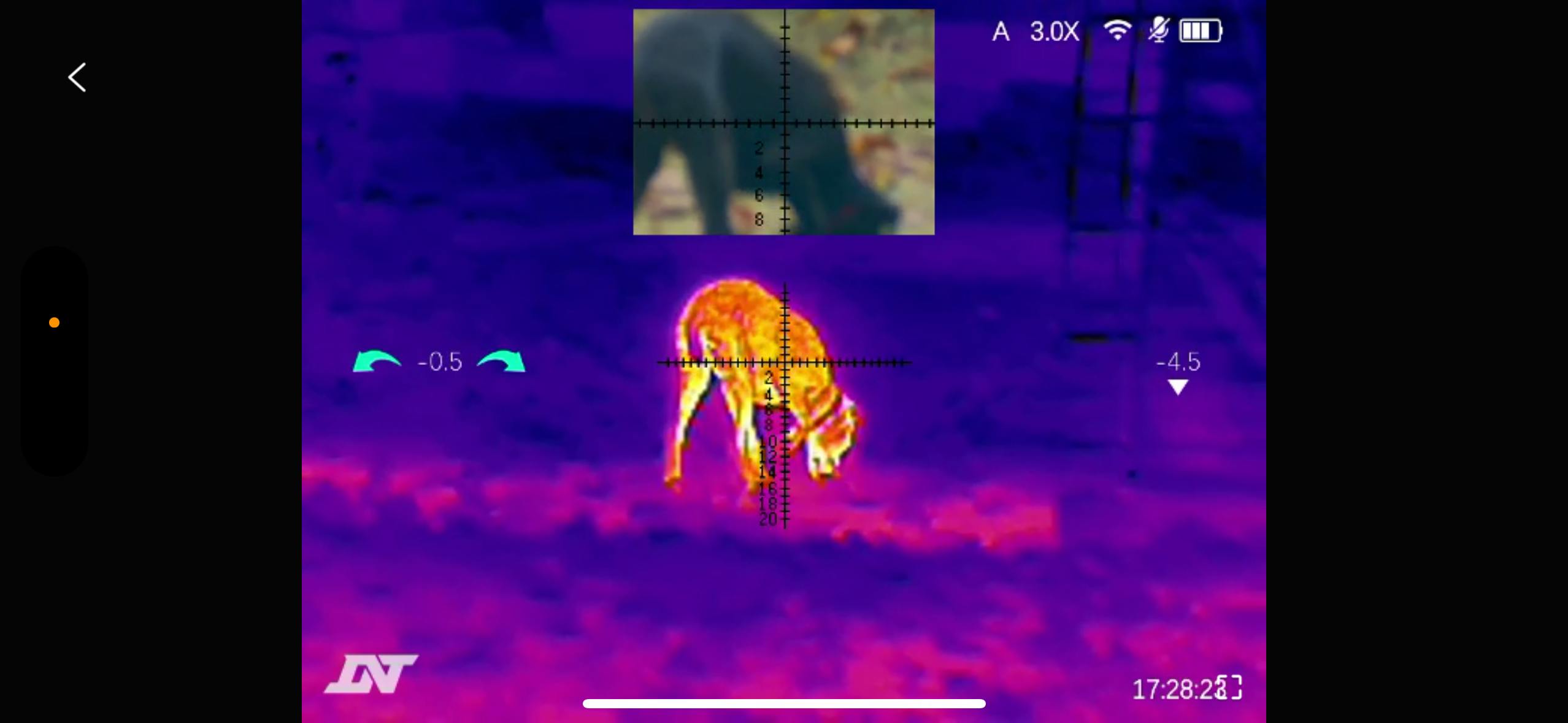

The Picture-In-Picture (PIP) feature integrates thermal detection and night vision identification into a single image. enabling confident engagement of intended targets with the Multi-Spectral ThermNight TNC225R.
Morning
Twilight
Evening
Experience the thrill of the hunt with a compact and lightweight design

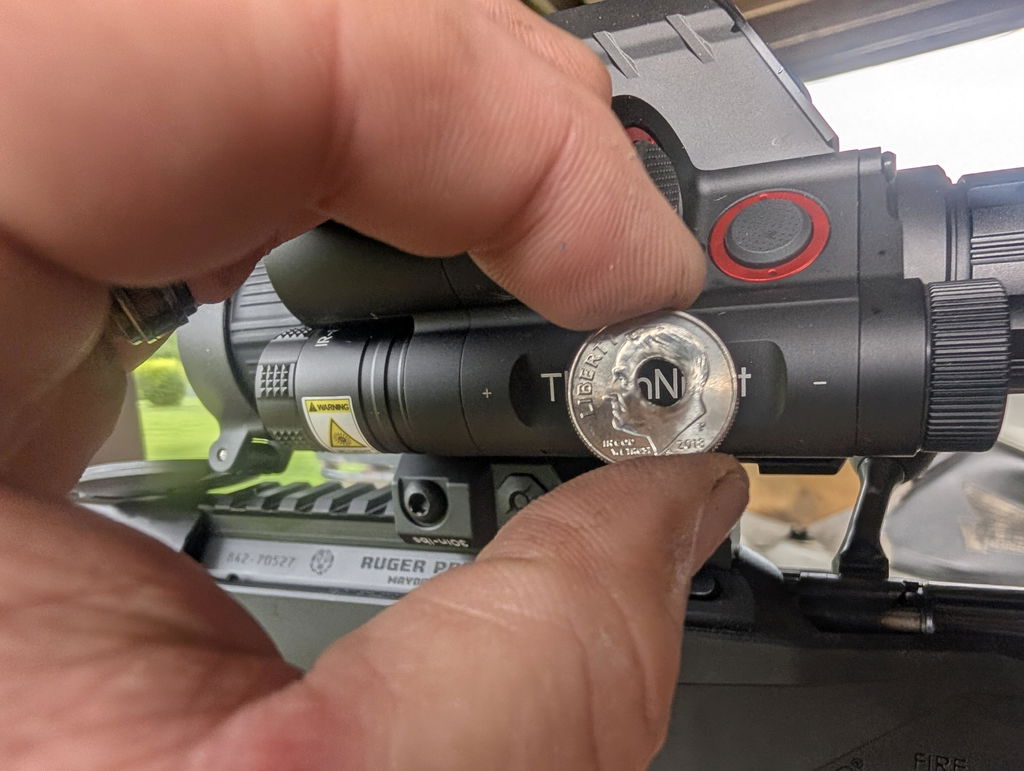

With a deliberate emphasis on compact design and lightweight construction, the ThermNight TNC225R is engineered to thrive in all environments, measuring just 7 inches long and weighing a mere 22.8oz.
Dual Aiming System Calibrated in One
The ThermNight TNC225R's "one shot zeroing" function is available in both thermal imaging and day/night vision channel. With only one shot using the day/night vision, you can easily switch to the thermal and adjust the reticle to be zeroed to the same point of impact (POl) as your day/night vision, saving you time so you can focus on your hunt.
Multispectral Mode Display for Better Detection and Identification
With a focus on enhancing detection and identification processes, the ThermNight TNC225R offers unparalleled convenience: toggle effortlessly between display modes (Day/Night Vision, Thermal, or a hybrid) via Picture-in-Picture (PIP) at the touch of a button. Accelerate target recognition capabilities with the advanced Multi-Spectral ThermNiaht TNC225R.
Cutting-edge Laser Rangefinder and DNT App
Equipped with a sophisticated built-in laser rangefinder, the device excels in accuracy, delivering precise distance measurements ranging from 5 to 1100 yards.
Once the distance is determined and seamlessly uploaded to the integrated DNT app,
the advanced ballistic calculator swiftly computes a ballistic solution which is then represented in either dial-in or holdover corrections, ensuring every shot hits its mark with unparalleled accuracy.
The preloaded bullet database also facilitates faster and easier ballistic profile configuration.
Detachable IR Illuminator
The removable IR Illuminator allows you to switch between 850nm or 940nm.
(940nm IR illuminator can be purchased separately.)
Other Features
Built in 32Gb Storage
Detachable Eye Cup
Designed With Metal Threads
Digital Zoom
Wheel
Digital Gyroscope For
Accurate Inclination And
Cant Angle
Up to 5 hour Battery
Life
Aiming Methods:
Dial-In Or Holdover
-TNC225R SPECIFICATIONS-
Physical Specifications
Net Weight
Dimensions
Storage
22.8oz
6.7*3.3*3.1 Inches
Internal Storage, 32GB
LRF Maximum Measuring Range
WIFI/APP
Bluetooth
5-1100yards
Yes
Yes
Ingress Protection
Operating Temperature
Shock Resistance
IP67
-4~122F
800Gs
Display Specifications
Type
Display Resolution
Frame Rate
Micro-OLED
1024*768 pixels
50FPS
Battery Power Supply
Battery Type
Operating Time
External Power Supply
18650 Battery(flat top)
5h
5V - Type C USB
THERMAL CHANNEL - Sensor Specifications
Resolution
Field of View(FOV)
Frame Rate
256x192px
7.03°x 5.28°
50FPS
Pixel Size
NETD
Focal Length of Objective Lens
12x12um
≤25mk@25℃
25mm
Base Magnification
Digital Zoom
Image Sensor
3X
3X,6X,9X,12X
Uncooled Infrared Image Sensor
VISIBLE LIGHT CHANNEL - Sensor Specifications
Resolution
Sensor Frame Rate
Video Record Resolution
1920*1080 pixels
60FPS
1024*768 pixels
VISIBLE LIGHT CHANNEL - Optical Specifications
Objective Lens Focal Length
Field of View(FOV)
Eye-Relief
52mm
6.13°x 3.45°
45mm/1.8 Inches
Base Magnification
Digital Zoom
Diopter Adjustment
5X
5X,7.5X,10X,12X,15X,17.5X,20X
±5D
IR Wavelength
Infrared Power
850/940nm
Class 3R Eye Safe
Net Weight
22.8oz
Dimensions
6.7*3.3*3.1 Inches
Storage
Internal Storage, 32GB
LRF Maximum Measuring Range
5-1100yards
WIFI/APP
Yes
Bluetooth
Yes
Ingress Protection
IP67
Operating Temperature
-4~122F
Shock Resistance
800Gs
Type
Micro-OLED
Display Resolution
1024*768 pixels
Frame Rate
50FPS
Battery Type
18650 Battery(flat top)
Operating Time
5h
External Power Supply
5V - Type C USB
Resolution
256x192px
Field of View(FOV)
7.03°x 5.28°
Frame Rate
50FPS
Pixel Size
12x12um
NETD
≤25mk@25℃
Focal Length of Objective Lens
25mm
Base Magnification
3X
Digital Zoom
3X,6X,9X,12X
Image Sensor
Uncooled Infrared Image Sensor
Resolution
1920*1080 pixels
Sensor Frame Rate
60FPS
Video Record Resolution
1024*768 pixels
Objective Lens Focal Length
52mm
Field of View(FOV)
6.13°x 3.45°
Base Magnification
5X
Digital Zoom
5X,7.5X,10X,12X
15X,17.5X,20X
15X,17.5X,20X
Eye-Relief
1.8 Inches
Diopter Adjustment
±5D
IR Wavelength
850/940nm
Infrared Power
Class 3R Eye Safe
Customer Reviews
Based on 194 reviews
91%
(176)
8%
(16)
1%
(1)
0%
(0)
1%
(1)
F
Great optics, great price . The thermal and night vision is incredible
A
Great product for price point. Many desirable features. Leaves me wanting to upgrade for better resolution, but can't beat it for the price. Would be sweet to automate the zeroing freeze frame with the recoil sense. Can trigger video record off of it, why not trigger freeze frame in zeroing mode so you know exactly where reticle was pointed when shot.
S
Overall very pleased, zeroing was quick and efficient as well.
G

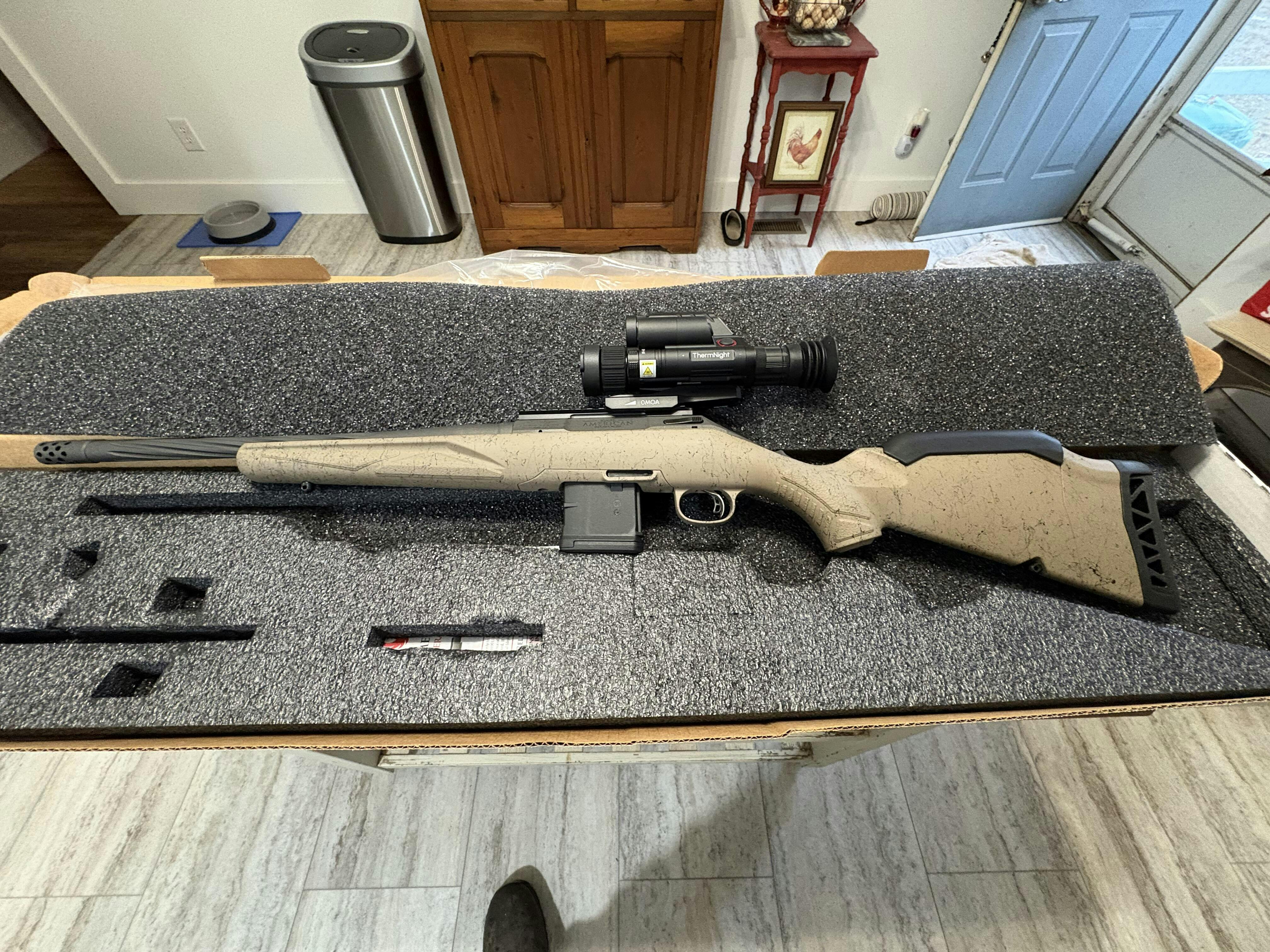

I took a few days to figure out the buttons and the installed it on my gun sighted it in which was a breeze. I like it can’t wait to go after coyotes or hogs at night.
K
I'm absolutely amazed at how many usable features are packed in this scope. I run thermal to scan and NV in PIP to identify the target. The range finder is awesome to have.
