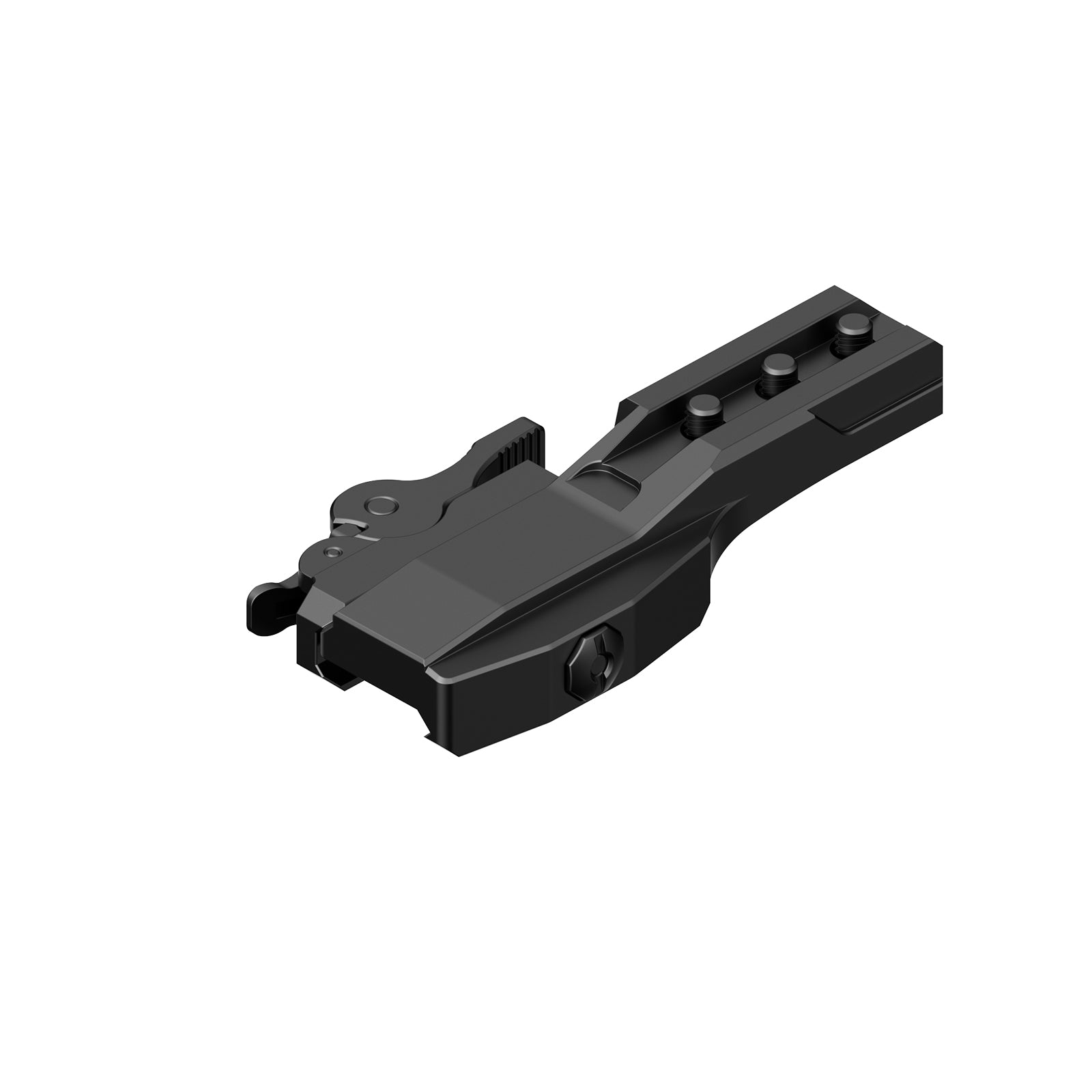

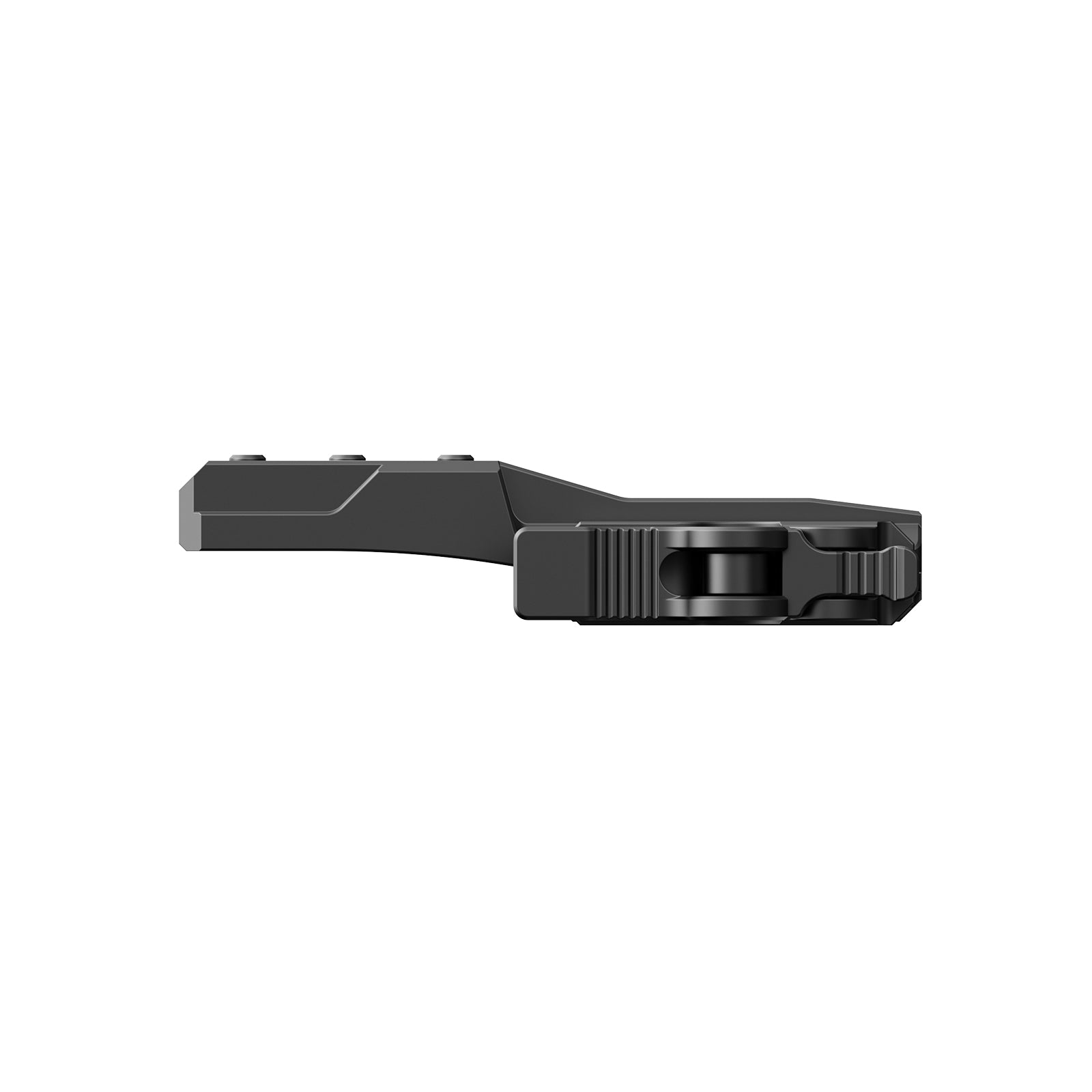

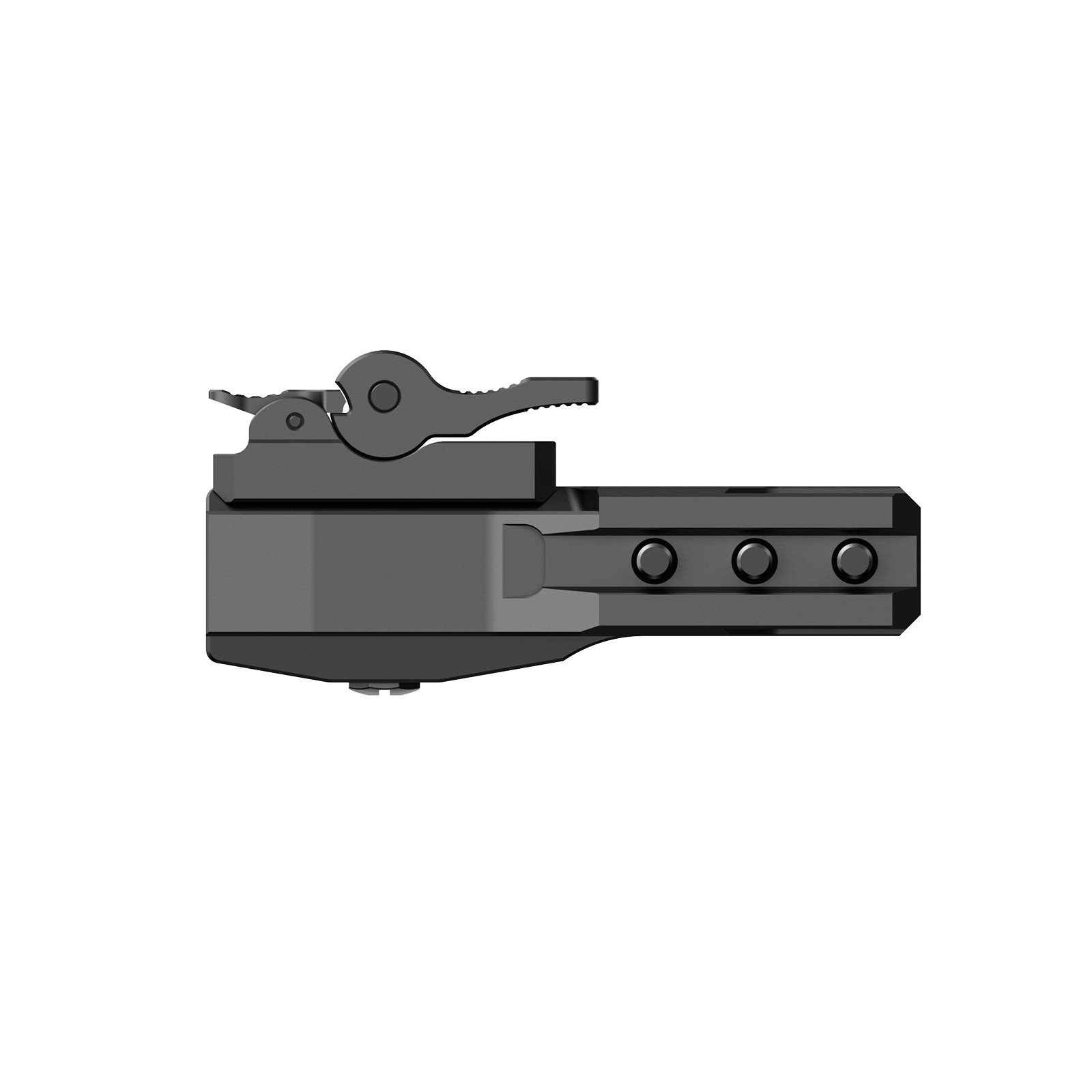

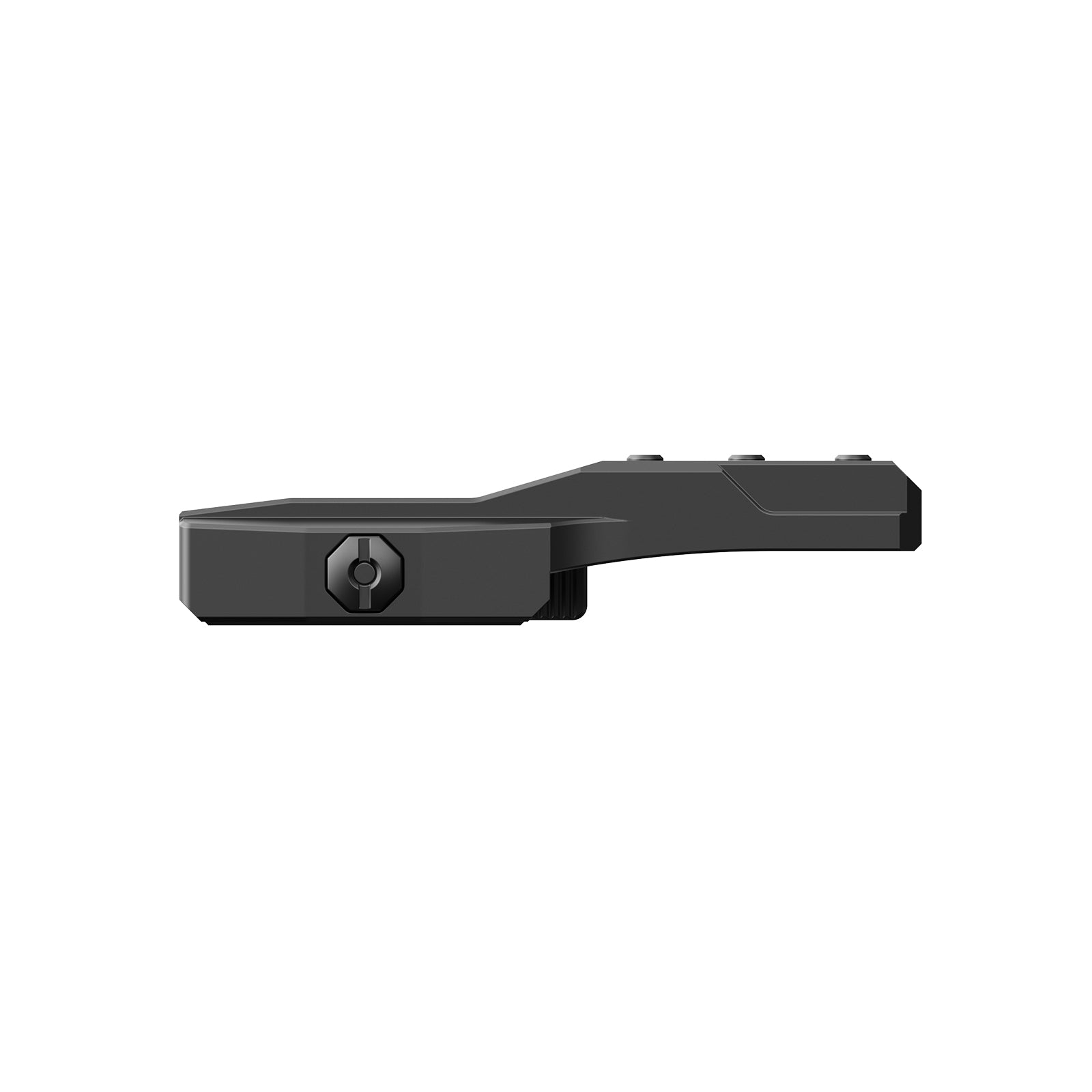

    Standard Quick Detach Mount with Unmatched Compatibility

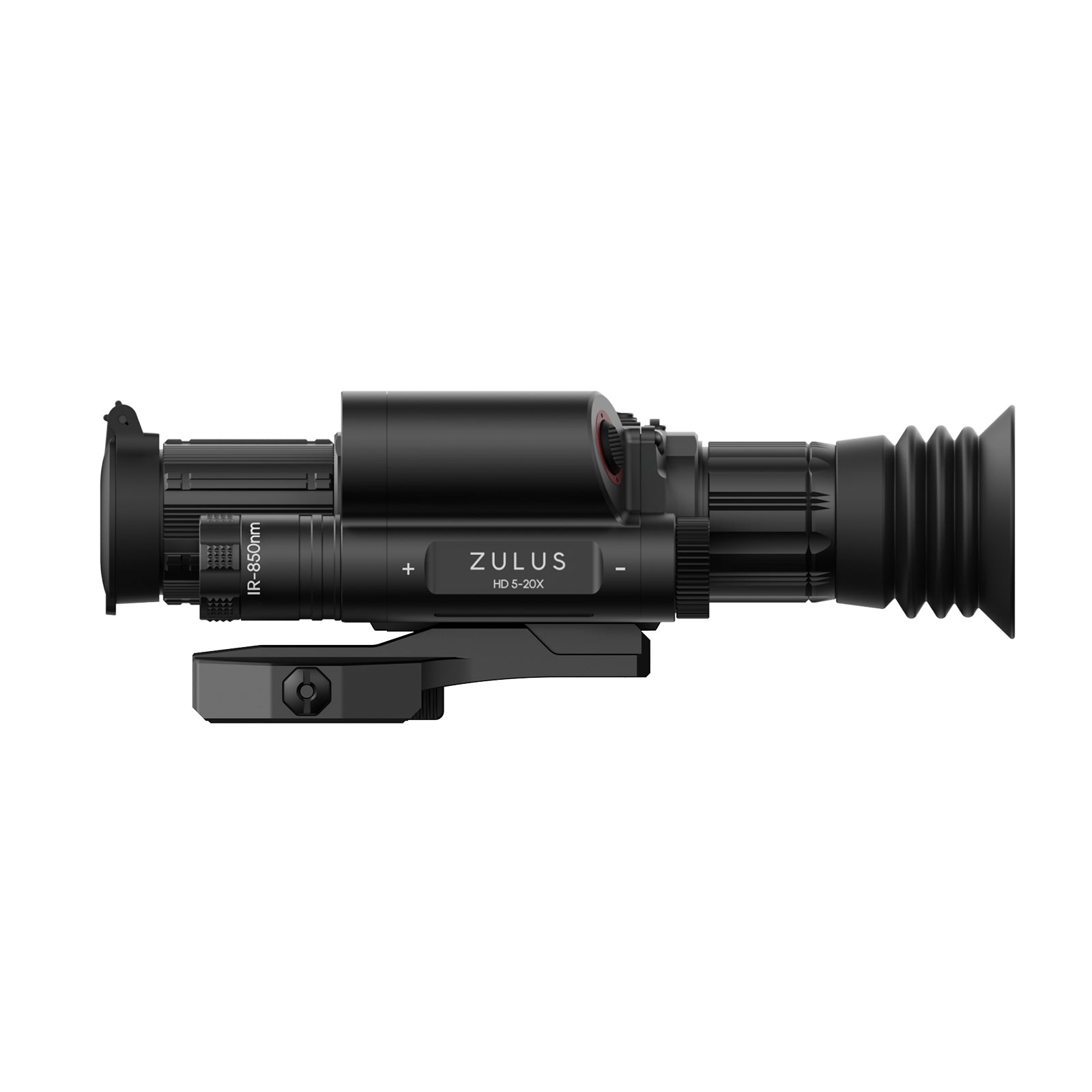

    Optimized for perfect eye alignment, the QDS150 provides a 1.5″ height from rail to optic centerline and integrates seamlessly with all DNT digital scopes and other compatible optics. It enables quick optic detachment without losing zero, keeping your setup mission-ready in any scenario.


    Swift Detach, Solid Performance

    With a modern design and cantilever structure, this rapid detach mount offers flexible eye relief and a customized fit. The no tools detach system ensures quick setup, while the precision locking latch secures your optic. When it’s time to detach, simply press the latch and flip the lever for a fast, smooth transition.


    Rugged Durability Meets Elegant Design

    Machined from a single block of 6063 aircraft-grade aluminum, the QDS150 delivers exceptional strength and stability. Its hard-anodized matte black finish resists scratches and corrosion, offering a sleek, professional look built to last. Tough and stylish, this quick switch mount performs flawlessly in any environment.


    Note: Earlier versions of the TNC225R feature a square mounting base (see image below). These models are not compatible with the QDS150 and QDM150 Quick Detach Mounts.

    -QDS150 SPECIFICATIONS-

    Typical Use Case
    Designed For
    Compatible Series
    Mount for standalone scope and Clip-On
    All DNT Digital Scopes
    ZULUS / HYDRA / ThermNight
    Interface (Scope Side)
    Interface (Rail Side)
    Material
    Scope Slot with Screw Holes
    Picatinny Rail
    6063 Aircraft-grade Aluminum Alloy
    Color / Surface Treatment
    Dimensions (L × W × H)
    Weight
    Matte Black / Hard-Anodization
    100.0 mm × 48.0 mm × 22.0 mm / 3.94 in × 1.89 in × 0.87 in
    83 g / 2.93 oz
    Quick Detach Mechanism
    Zero Maintenance Ability
    Return-to-Zero Accuracy
    Auto-Locking Latch
    ≤0.1 mil
    ≤0.3 mil
    Recoil Rating
    Operating Temperature
    Screw Hole Count
    800 Gs / .50 BMG
    −20 to 50°C / −4 to 122°F
    3
    Screw Hole Spacing
    Screw Specifications
    Head Shape [Socket] Diameter × Length × Head Diameter (mm)

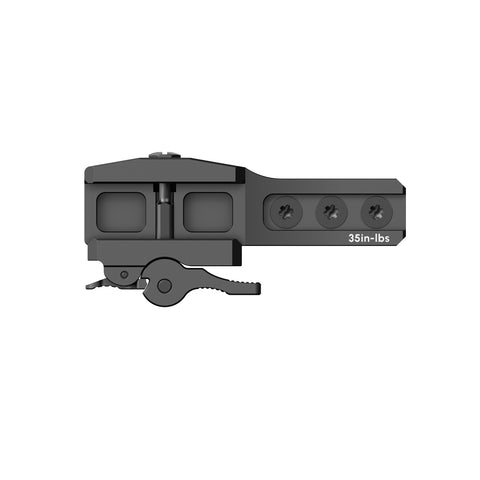

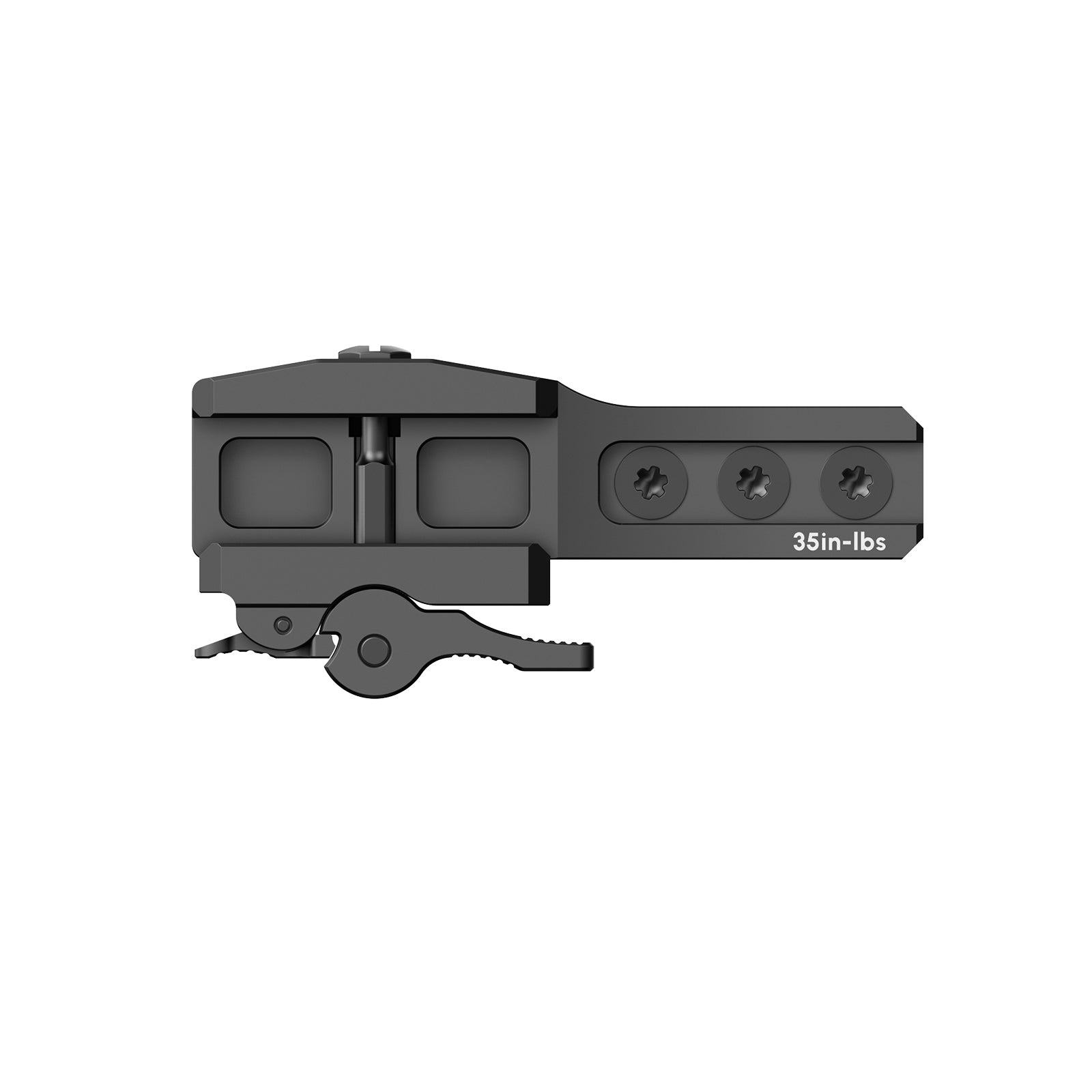

    Torque
    14 mm / 0.55 in
    Flat-Head [Torxplus 25] M5×10×9.8
    35 in-lbs

    Typical Use Case
    Mount for standalone scope and Clip-On
    Designed For
    All DNT Digital Scopes
    Compatible Series
    ZULUS / HYDRA / ThermNight
    Interface (Scope Side)
    Scope Slot with Screw Holes
    Interface (Rail Side)
    Picatinny Rail
    Material
    6063 Aircraft-grade Aluminum Alloy
    Color / Surface Treatment
    Matte Black / Hard-Anodization
    Dimensions (L × W × H)
    100.0 mm × 48.0 mm × 22.0 mm / 3.94 in × 1.89 in × 0.87 in
    Weight
    83 g / 2.93 oz
    Quick Detach Mechanism
    Auto-Locking Latch
    Zero Maintenance Ability
    ≤0.1 mil
    Return-to-Zero Accuracy
    ≤0.3 mil
    Recoil Rating
    800 Gs / .50 BMG
    Operating Temperature
    −20 to 50°C / −4 to 122°F
    Screw Hole Count
    3
    Screw Hole Spacing
    14 mm / 0.55 in
    Screw Specifications
    Head Shape [Socket] Diameter × Length × Head Diameter (mm)
    Flat-Head [Torxplus 25] M5×10×9.8
    Torque
    35 in-lbs
    Note
    DNT digital scopes have similar height from base to optic centerline across models and series.
