RS43 0.43″ Cantilever Mount Riser Compatible with QDS150 and QDM150
RS43 0.43″ Cantilever Mount Riser Compatible with QDS150 and QDM150
RS43 0.43″ Cantilever Mount Riser Compatible with QDS150 and QDM150
RS43 0.43″ Cantilever Mount Riser Compatible with QDS150 and QDM150
RS43 0.43″ Cantilever Mount Riser Compatible with QDS150 and QDM150
RS43 0.43″ Cantilever Mount Riser Compatible with QDS150 and QDM150

RS43 0.43″ Cantilever Mount Riser Compatible with QDS150 and QDM150

$45.99
$45.99
$65.99
Note: RS43 functions only when paired with QDS150 or QDM150.
Subtotal: $45.99
RS43 0.43″ Cantilever Mount Riser Compatible with QDS150 and QDM150

RS43 0.43″ Cantilever Mount Riser Compatible with QDS150 and QDM150

$65.99 $45.99

RS43 0.43″ Cantilever Mount Riser Compatible with QDS150 and QDM150

$65.99 $45.99

    RS43 0.43″ Cantilever Mount Riser Compatible with QDS150 and QDM150

    Raises Optic Centerline: Paired with a QDS150 or QDM150 mount, the RS43 raises your optic by 0.43″, making your optics centerline 1.93″.

    Durable & Reliable: Tested to remain zeroed within 0.25 mil after 1,000 impact cycles.

    Cantilever Design: Offers 2″ horizontal offset for flexible mounting options.

    Recommended Scenarios:

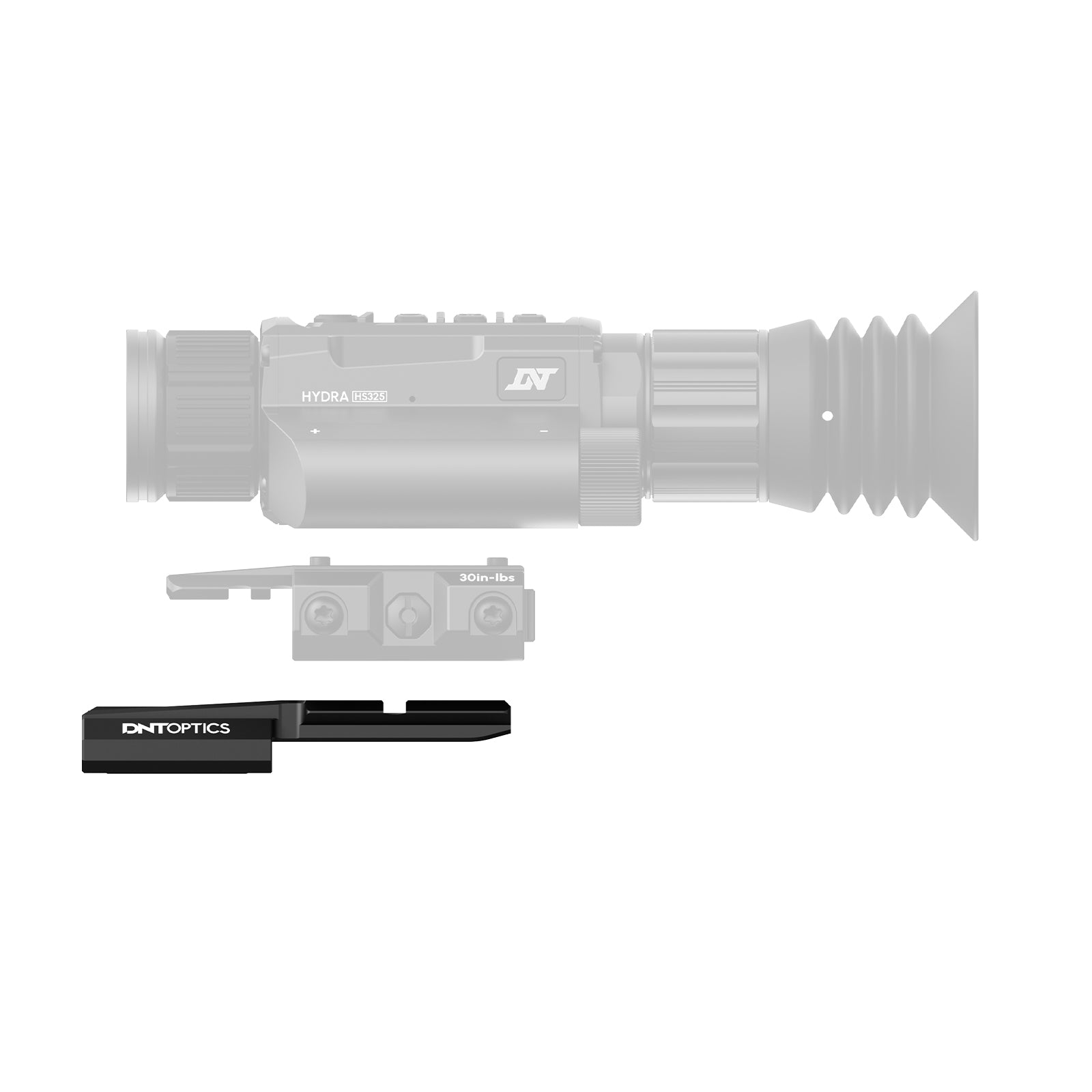

    1. Add RS43 to the HYDRA + QDM150 combo to use it as a clip-on with a 1.93″ LPVO;

    2. Add RS43 to the NVMD + QDS150 combo to magnify a red dot mounted at 1.93″;

    3. Use the RS43 + QDS150 combo to raise your digital scope for a higher mounting position.

    -RS43 SPECIFICATIONS-

    Typical Use Case
    Designed For
    Compatible Series
    Rising Scope Height over Rail to 1.93''
    QDS150 / QDM150
    QDS150 / QDM150
    Interface (Scope Side)
    Interface (Rail Side)
    Material
    Single Picatinny Slot
    Picatinny Rail
    6063 Aircraft-grade Aluminum Alloy
    Color / Surface Treatment
    Dimensions (L × W × H)
    Weight
    Matte Black / Hard-Anodization
    "101.5 mm × 35.0 mm ×17.3 mm / 4.00 in × 1.38 in × 0.68 in"
    63.8 g / 2.25 oz
    Quick Detach Mechanism
    Zero Maintenance Ability
    Return-to-Zero Accuracy
    N/A
    ≤0.25 mil
    ≤0.1 mil
    Recoil Rating
    Operating Temperature
    Screw Specifications
    Head Shape [Socket] Diameter × Length × Head Diameter (mm)
    800 Gs / .50 BMG
    −20 to 50°C / −4 to 122°F
    Pan-Head [Torxplus 25] M5×20×9.25
    Side Plate Screw Torque
    Base Height Over Rail
    Measured from top of the rail to the top of the riser
    Scope Height Over Rail
    Measured from top of the rail to the centerline of the scope
    30 in-lbs
    0.43 in (± 0.05 in)
    1.93 in (± 0.1 in)
    Measured with ZULUS V2 and QDS150
    Horizontal Offset
    Measured from the center of the bottom positioning block to the center of the top Picatinny slot
    Note
    2.02 in (± 0.05 in)
    DNT digital scopes have a similar height from base to optic centerline across models and series (approx. 1 inch).
    Typical Use Case
    Rising Scope Height over Rail to 1.93''
    Designed For
    QDS150 / QDM150
    Compatible Series
    QDS150 / QDM150
    Interface (Scope Side)
    Single Picatinny Slot
    Interface (Rail Side)
    Picatinny Rail
    Material
    6063 Aircraft-grade Aluminum Alloy
    Color / Surface Treatment
    Matte Black / Hard-Anodization
    Dimensions (L × W × H)
    101.5 mm × 35.0 mm ×17.3 mm / 4.00 in × 1.38 in × 0.68 in
    Weight
    63.8 g / 2.25 oz
    Quick Detach Mechanism
    N/A
    Zero Maintenance Ability
    ≤0.25 mil
    Return-to-Zero Accuracy
    ≤0.1 mil
    Recoil Rating
    800 Gs / .50 BMG
    Operating Temperature
    −20 to 50°C / −4 to 122°F
    Screw Specifications
    Head Shape [Socket] Diameter × Length × Head Diameter (mm)
    Pan-Head [Torxplus 25] M5×20×9.25
    Side Plate Screw Torque
    30 in-lbs
    Base Height Over Rail
    Measured from top of the rail to the top of the riser
    0.43 in (± 0.05 in)
    Scope Height Over Rail
    Measured from top of the rail to the centerline of the scope
    1.93 in (± 0.1 in)
    Measured with ZULUS V2 and QDS150
    Horizontal Offset
    Measured from the center of the bottom positioning block to the center of the top Picatinny slot
    2.02 in (± 0.05 in)
    Note
    DNT digital scopes have a similar height from base to optic centerline across models and series (approx. 1 inch).
